Description

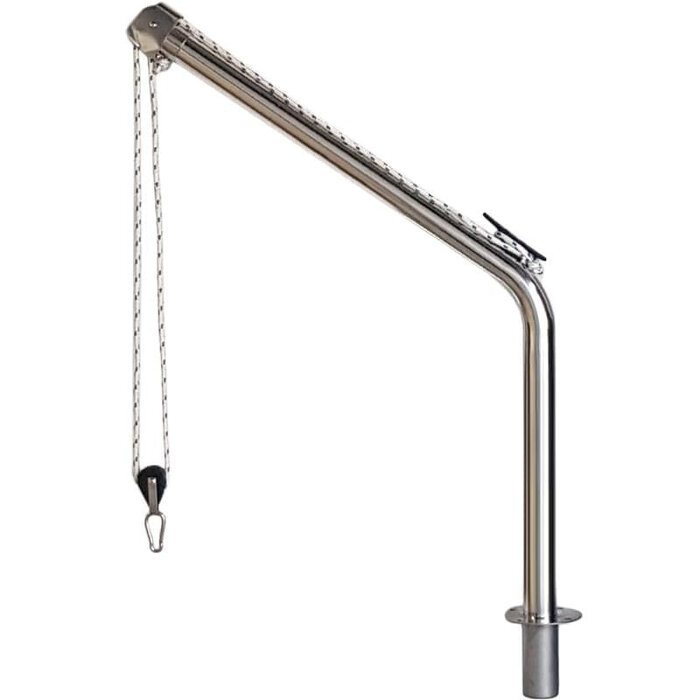

This Stainless Steel Davit comes complete with the corresponding flange, a block, a line, and a carabiner. The Davit has a tube diameter of 40mm, is 106cm high, 78cm wide, and has a maximum load capacity of up to 62kg. For installation, a hole size of approximately 50mm is required. The flange itself has a diameter of 130mm. The flange can be secured with 4 countersunk M8 bolts (not included, length varies per situation). The Davit is supplied per piece.
- SS 316
- Davit diameter: 40mm
- Max load capacity per davit: 62kg
- Mounting hole size: 50mm
- Includes flange
- Includes block
- Includes line
- Includes carabiner

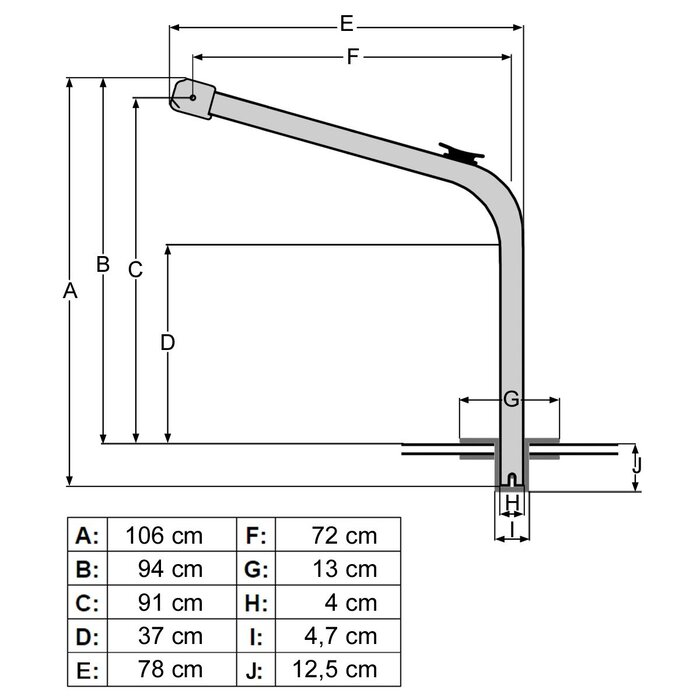

Dimensions
- Total davit height (A): 106cm
- Total height from deck (B): 94cm
- Distance from deck to pulley center (C): 91cm
- Distance from deck to bending point (D): 37cm
- Total width (E): 78cm
- Pulley center to pot center (F): 72cm

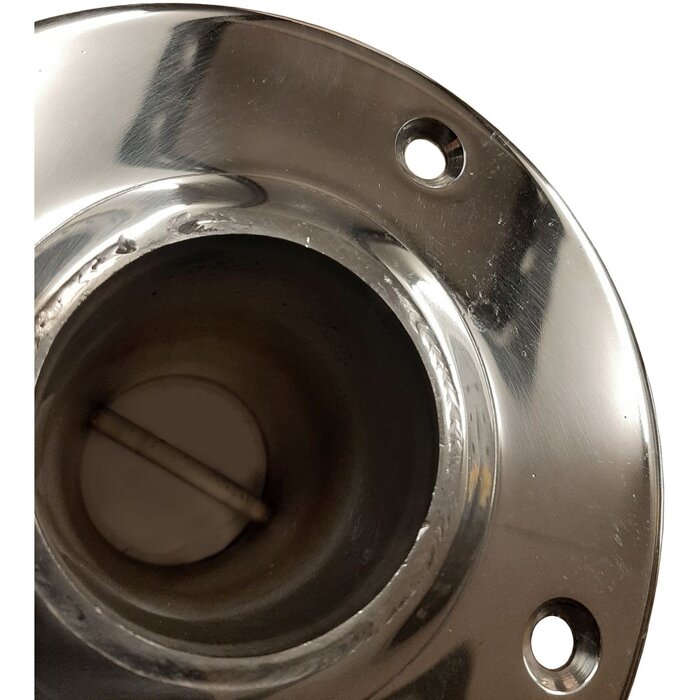

- Flange pot diameter (G): 130mm
- Davit diameter (H): 40mm
- Wall thickness: 2.5mm
- Saw hole diameter (I): 47mm
- Embedded pot depth (J):125mm
- Distance between mounting hole centers: 72mm
- Distance between opposite mounting hole centers: 103mm
