Description

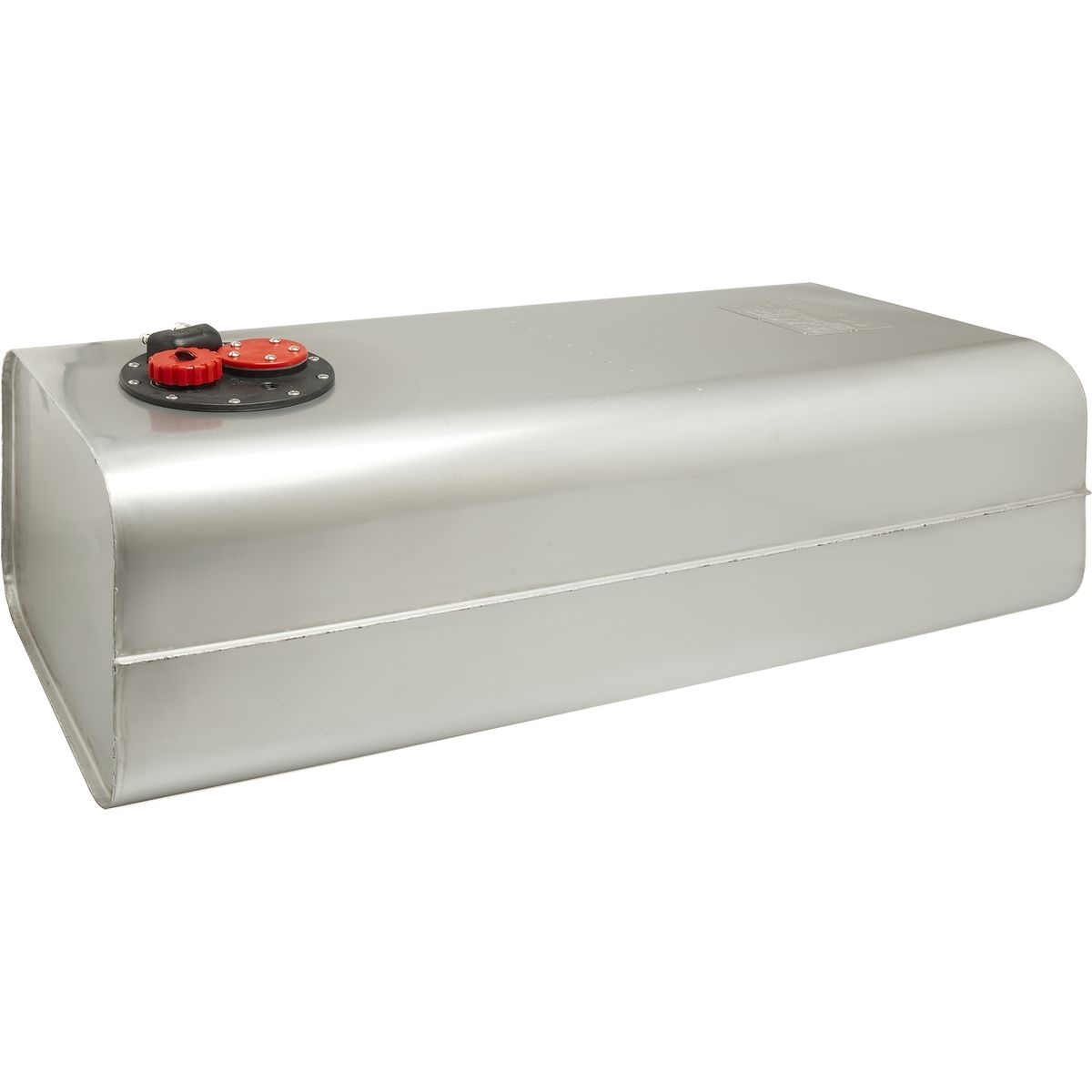

This Stainless Steel fuel tank is suitable for both diesel and petrol and comes with a flange plate. The capacity of 89 L is calculated by the manufacturer based on the outer dimensions and without taking into account the rounded corners. Our calculated capacity is 82.4 L. The size of the tank, measured without the flange plate, is 90x35x28cm.
- Manufacturer's capacity: 89 litres
- Our calculated capacity: 82.4 litres
- Length: 90cm
- Width: 35cm
- Height: 28cm (measured without flange plate)
- Minimum required height for installation: 32cm (excluding any sensor)
- Suitable for diesel and petrol
- Material: Stainless Steel

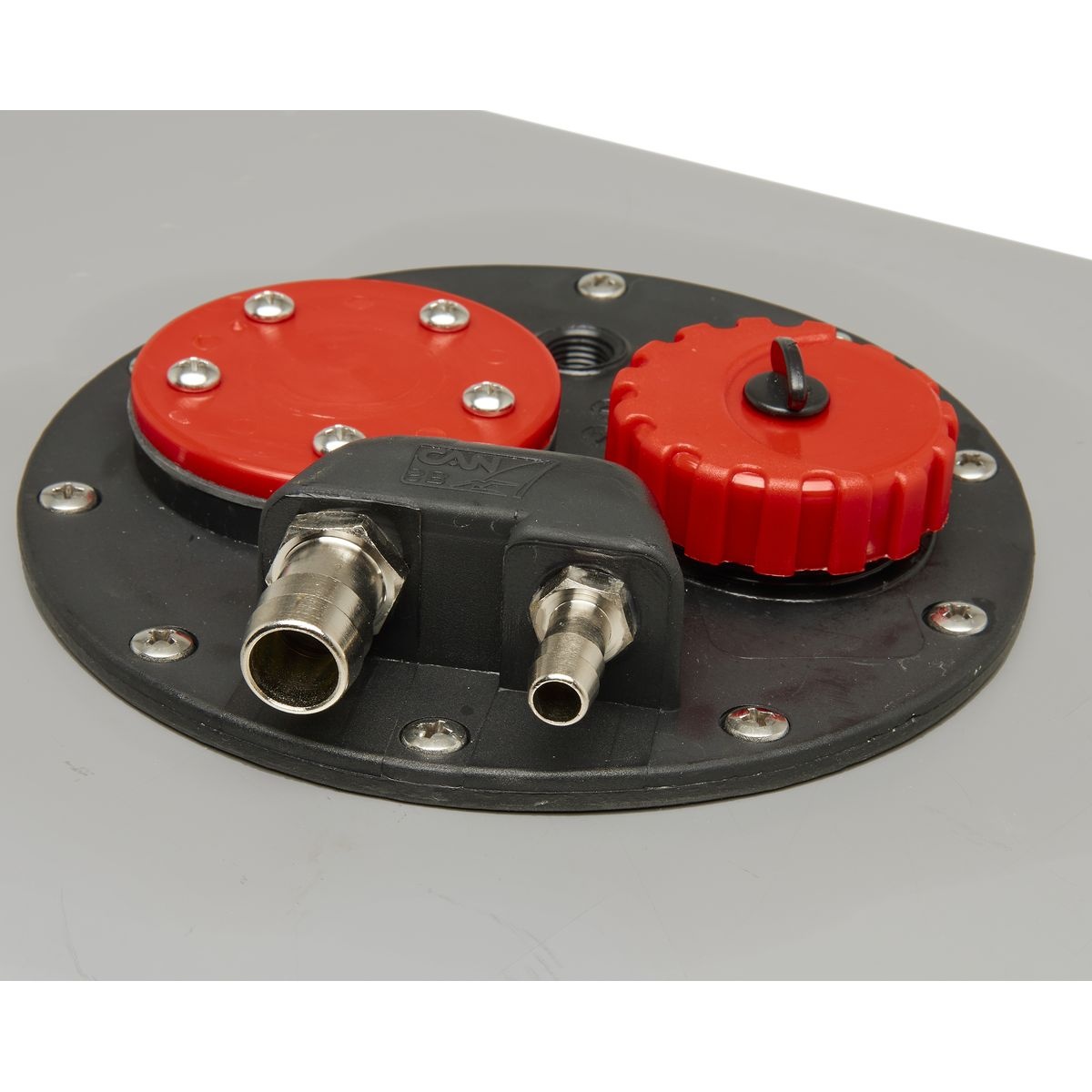

- Complete with:
- A: Tank cap with ventilation (1 1/2 Inch connection)
- B: Connection for suction lines for 8 to 12mm hose
- C: Ventilation connection for 16 to 19mm hose
- D: Possibility for connection of fuel sensor
- E: Possibility for connection of second suction line or return line for a diesel engine (1/4 inch internal thread)
