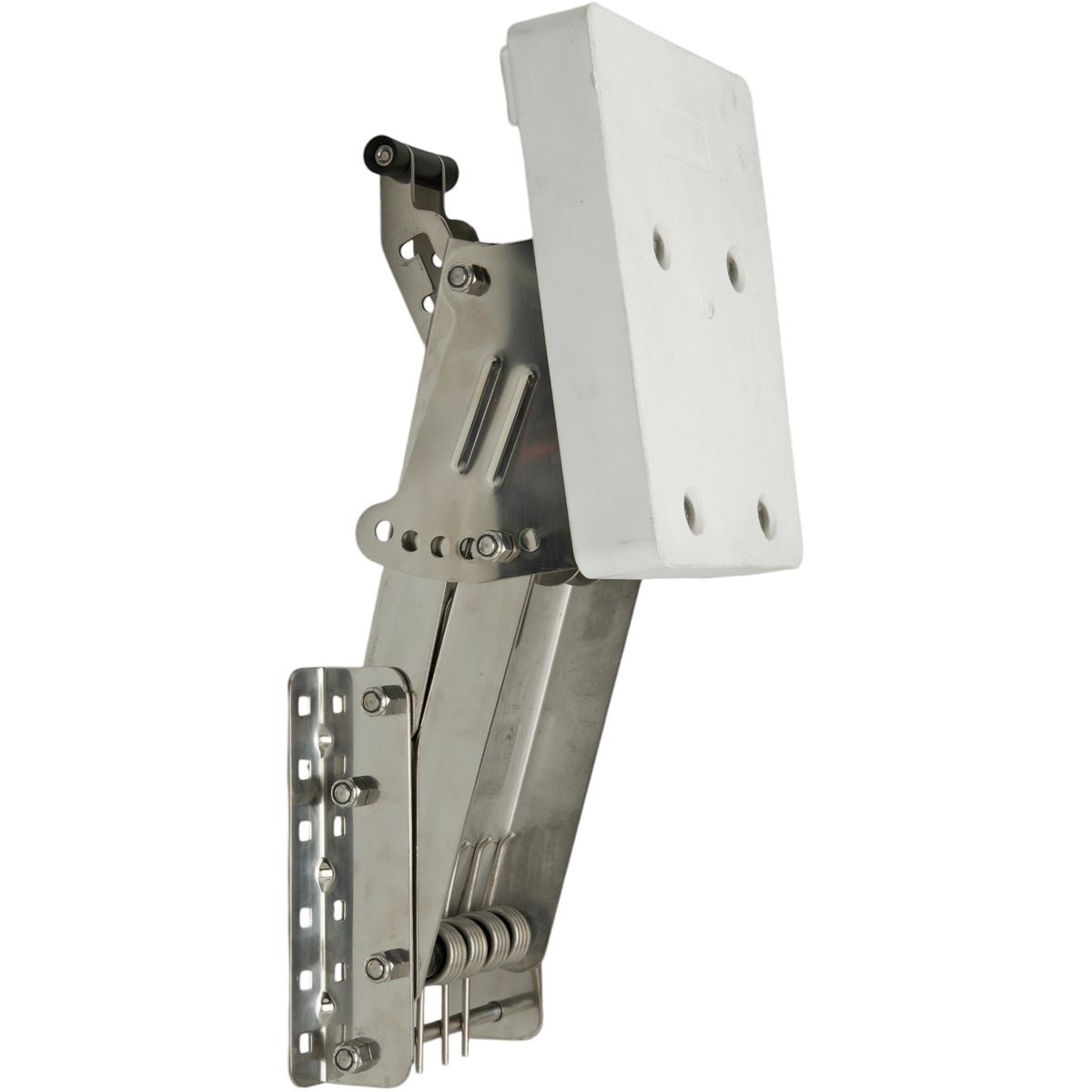

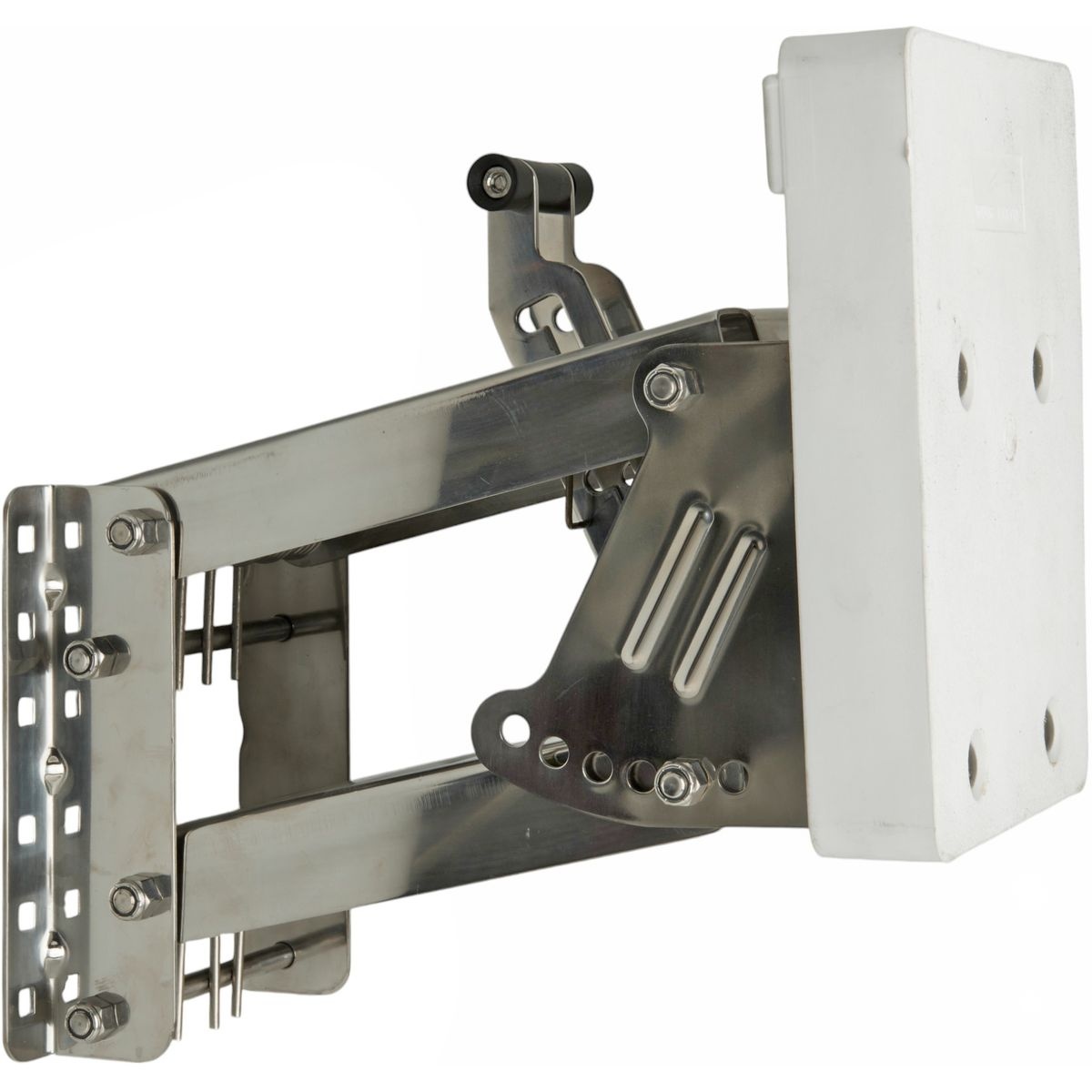

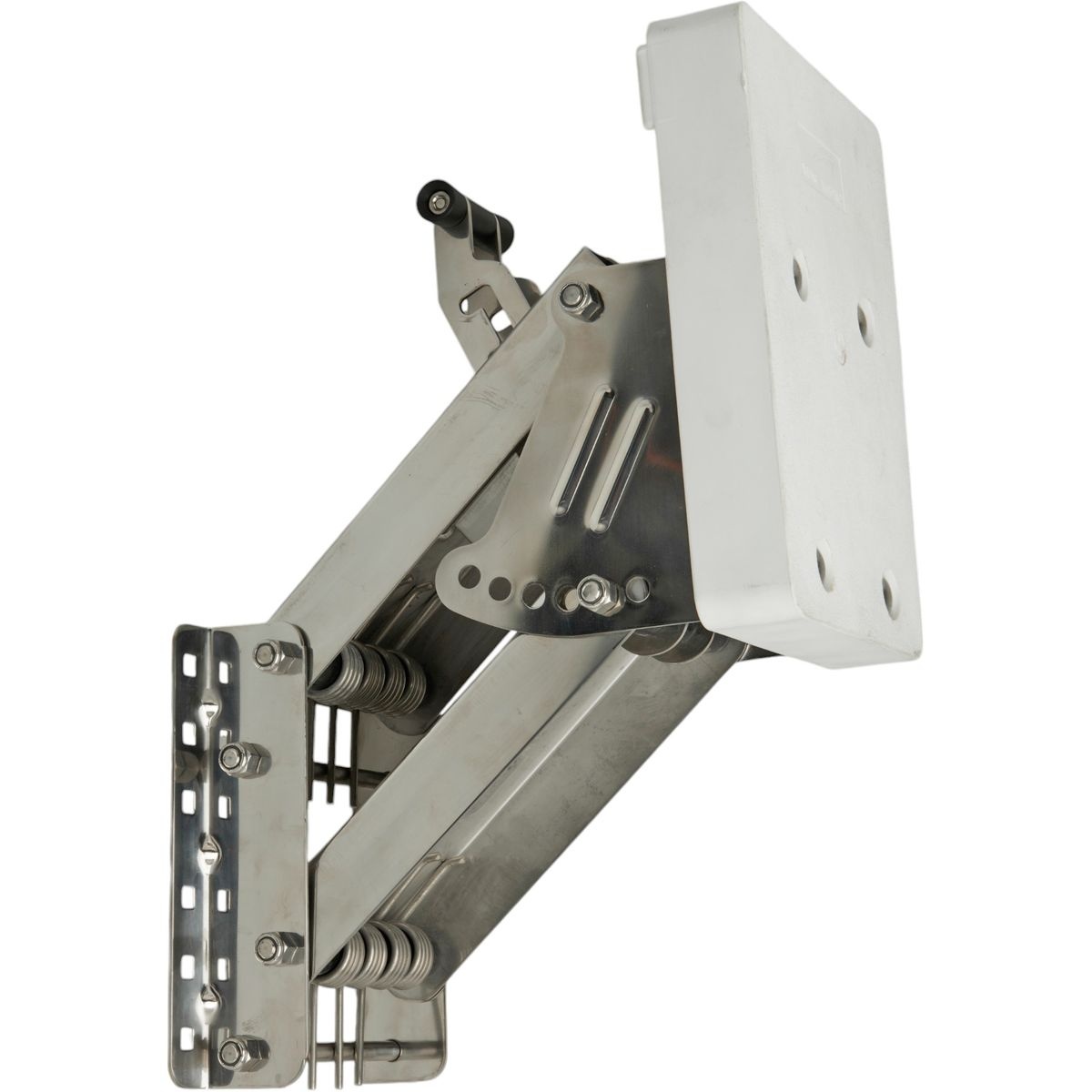

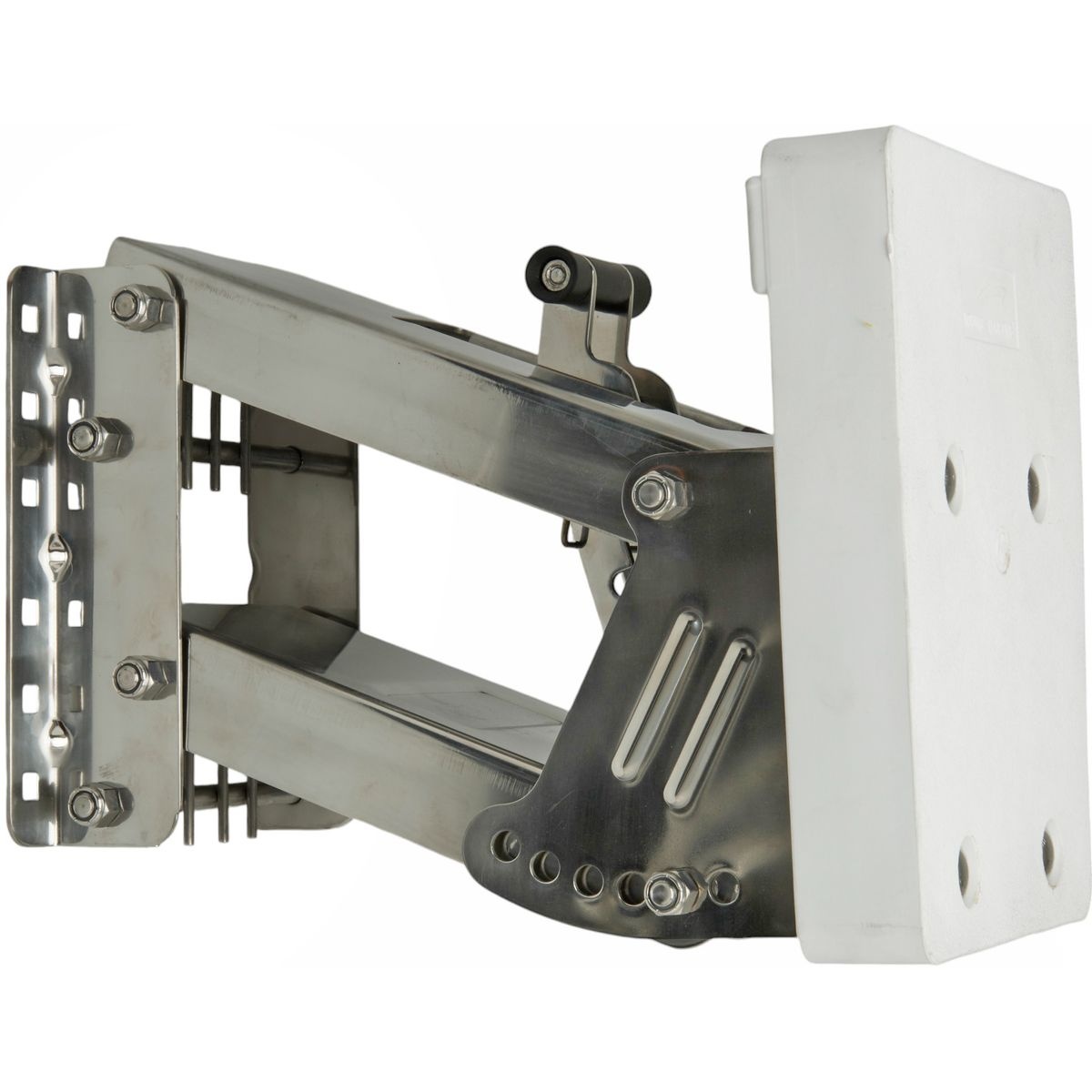

Kicker Motor Bracket Adjustable Hook Up to 40kg SS with Plastic Pad White

Product description:

• Material: Stainless steel 304 with plastic pad (white)
• For outboard motors up to 40kg / 20HP
• 4 adjustment options
• Number of springs: 4
• 12 mounting holes for M8
• Adjustable angle for tilted transom

Dimensions:

• Height of plastic board: 260mm
• Width of plastic board top: 205mm
• Width of plastic board bottom: 185mm
• Board thickness: 42mm
• Center distance of mounting holes: 30-30-40-30-30mm (height) and 168mm (width)
• Height of mounting plate: 202mm
• Width of mounting plate: 193mm

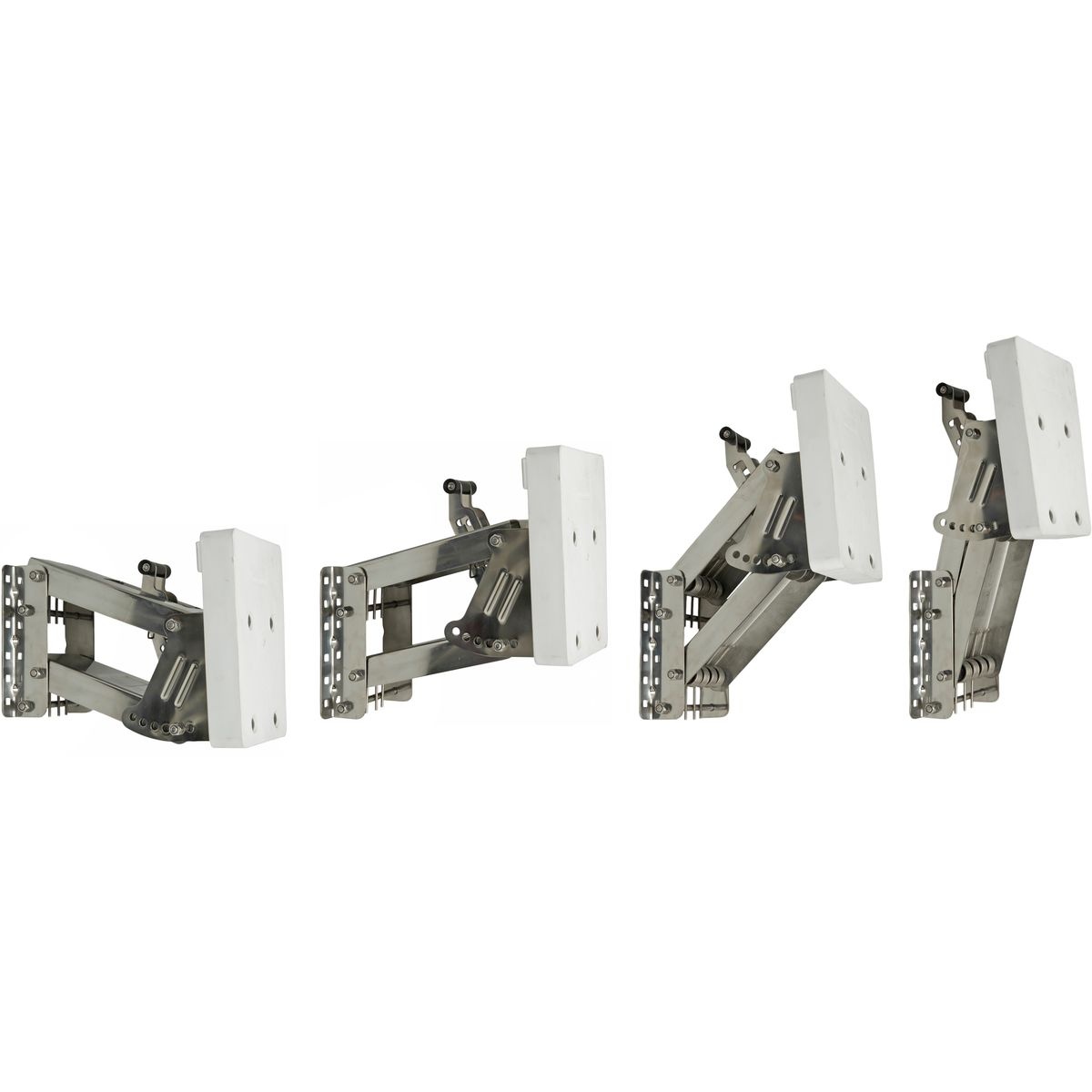

• Height difference lowest and highest position: approx. 265mm

Distances in lowest position:

• Bottom of board 38mm below bottom of mounting plate
• Top of board 18mm above top of mounting plate
• Outside plastic board to transom: 325mm



Distances in highest position:

• Bottom of board 23mm above bottom of mounting plate
• Top of board 285mm above top of mounting plate
• Outside plastic board to transom: 210mm

Tip: Combine with an outboard motor safety cable.
