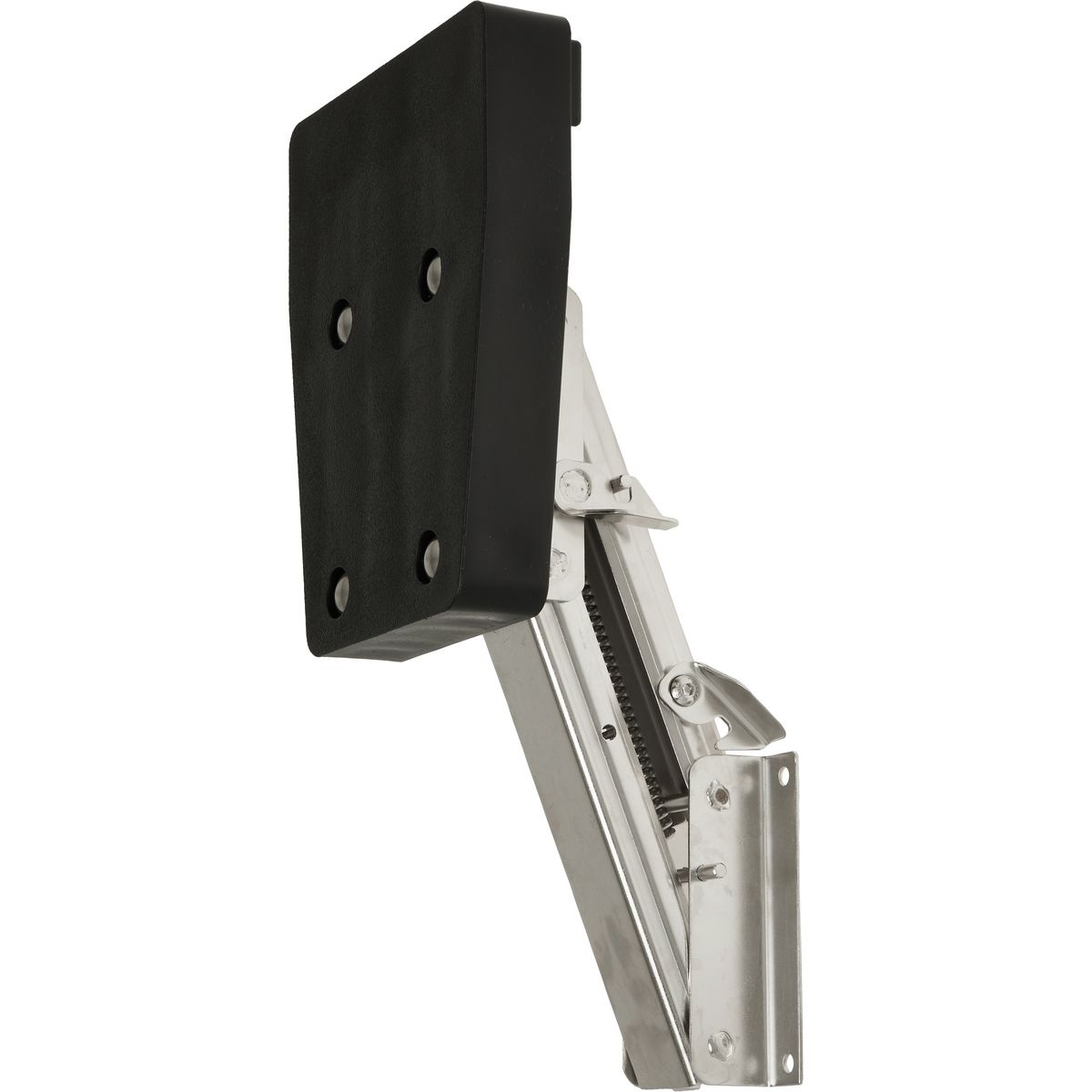

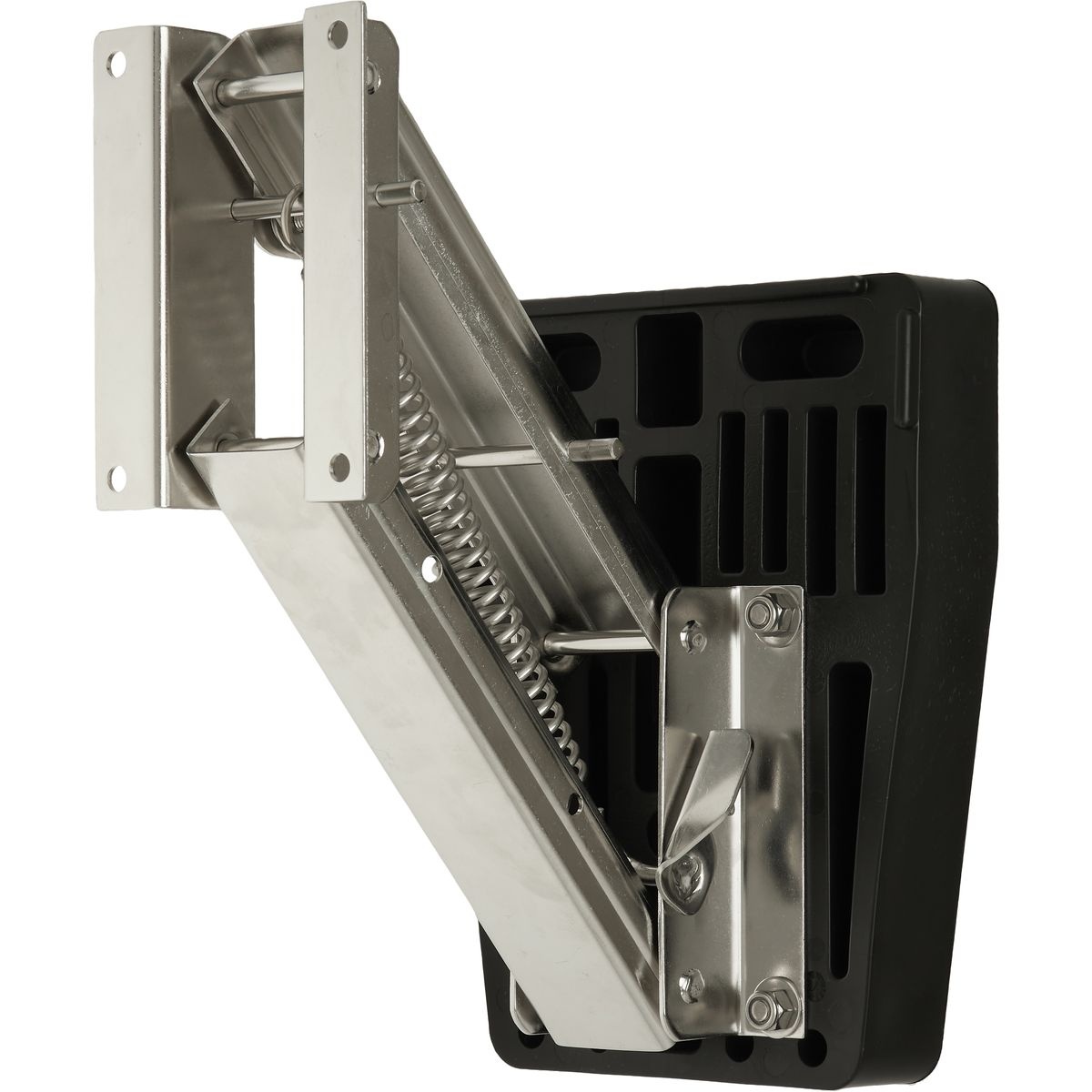

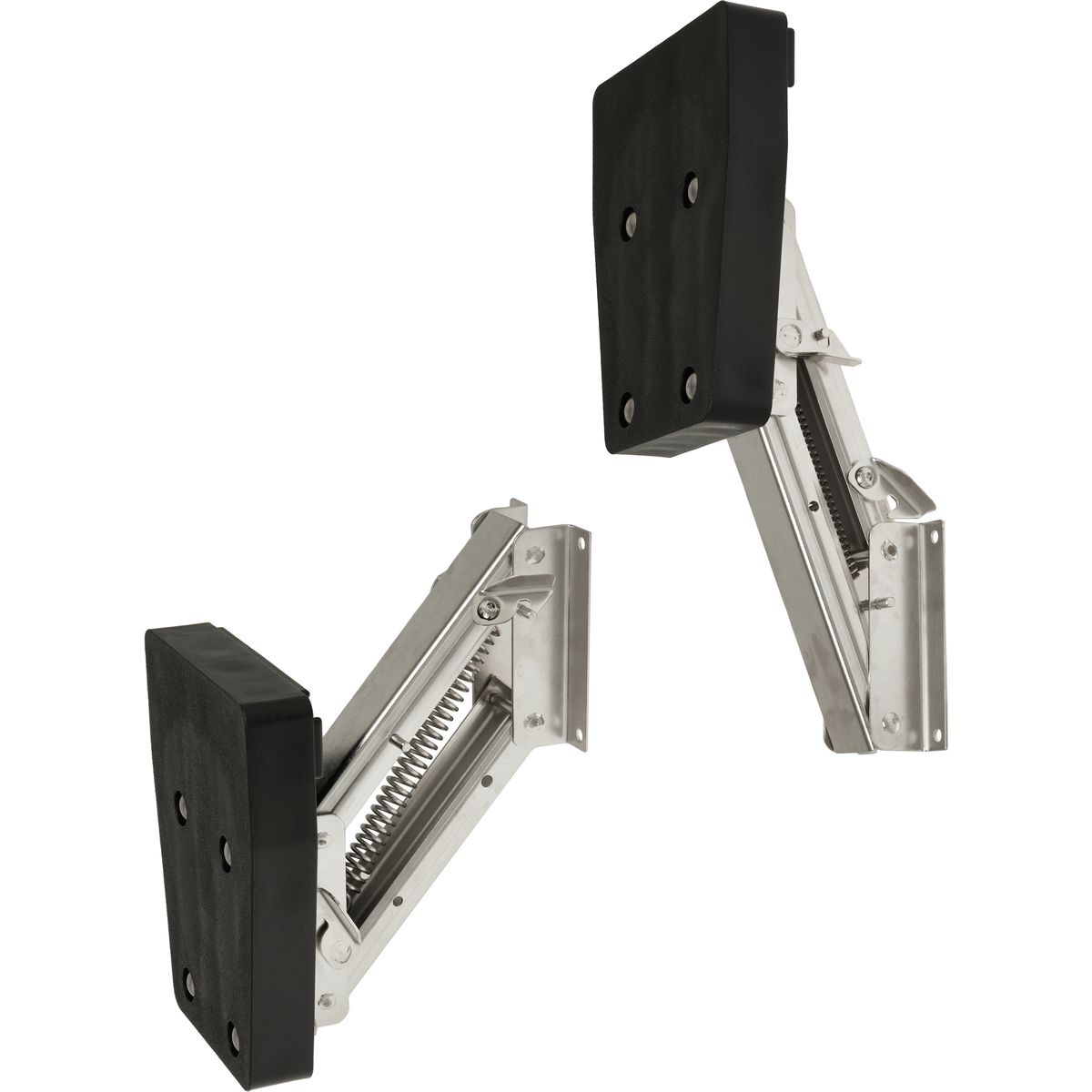

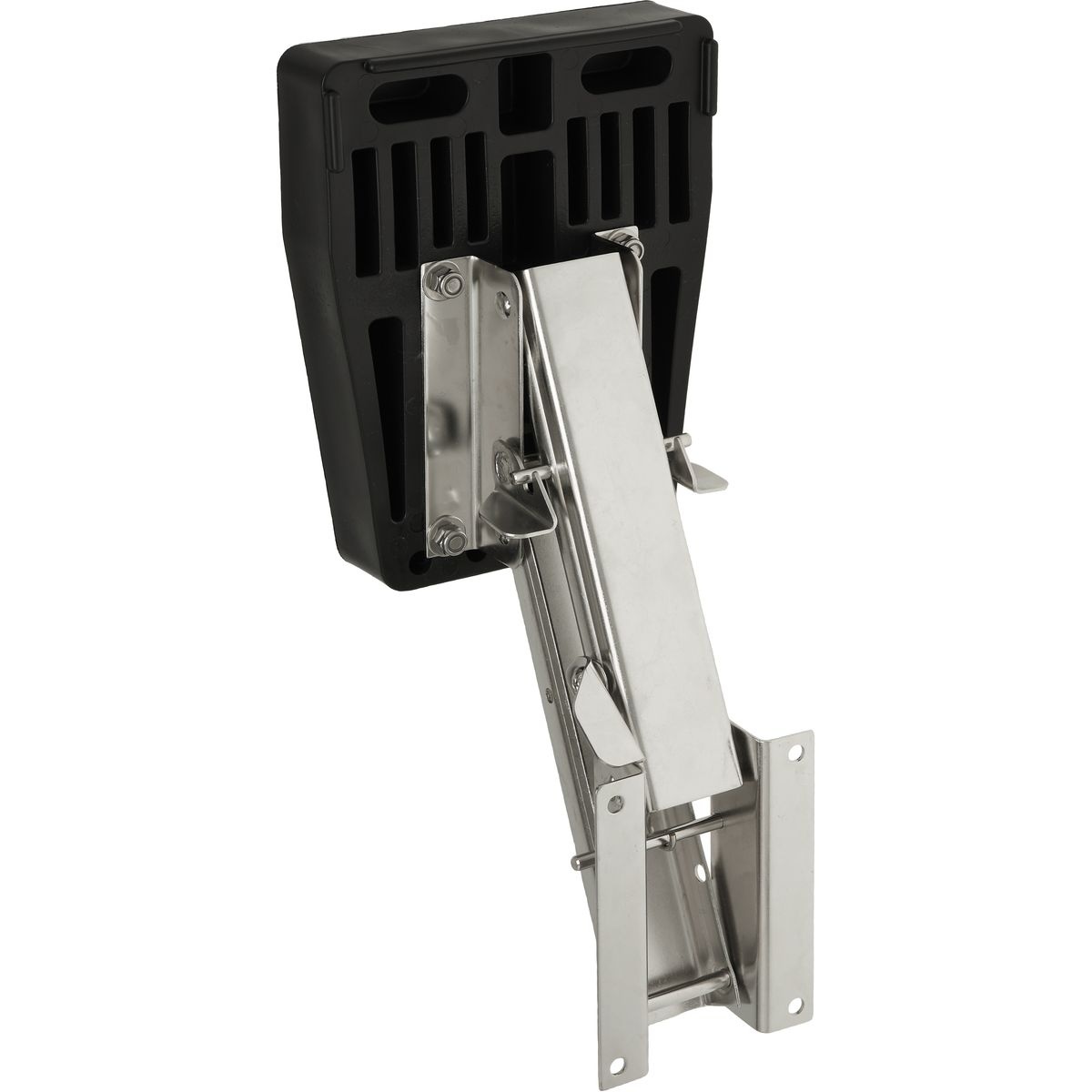

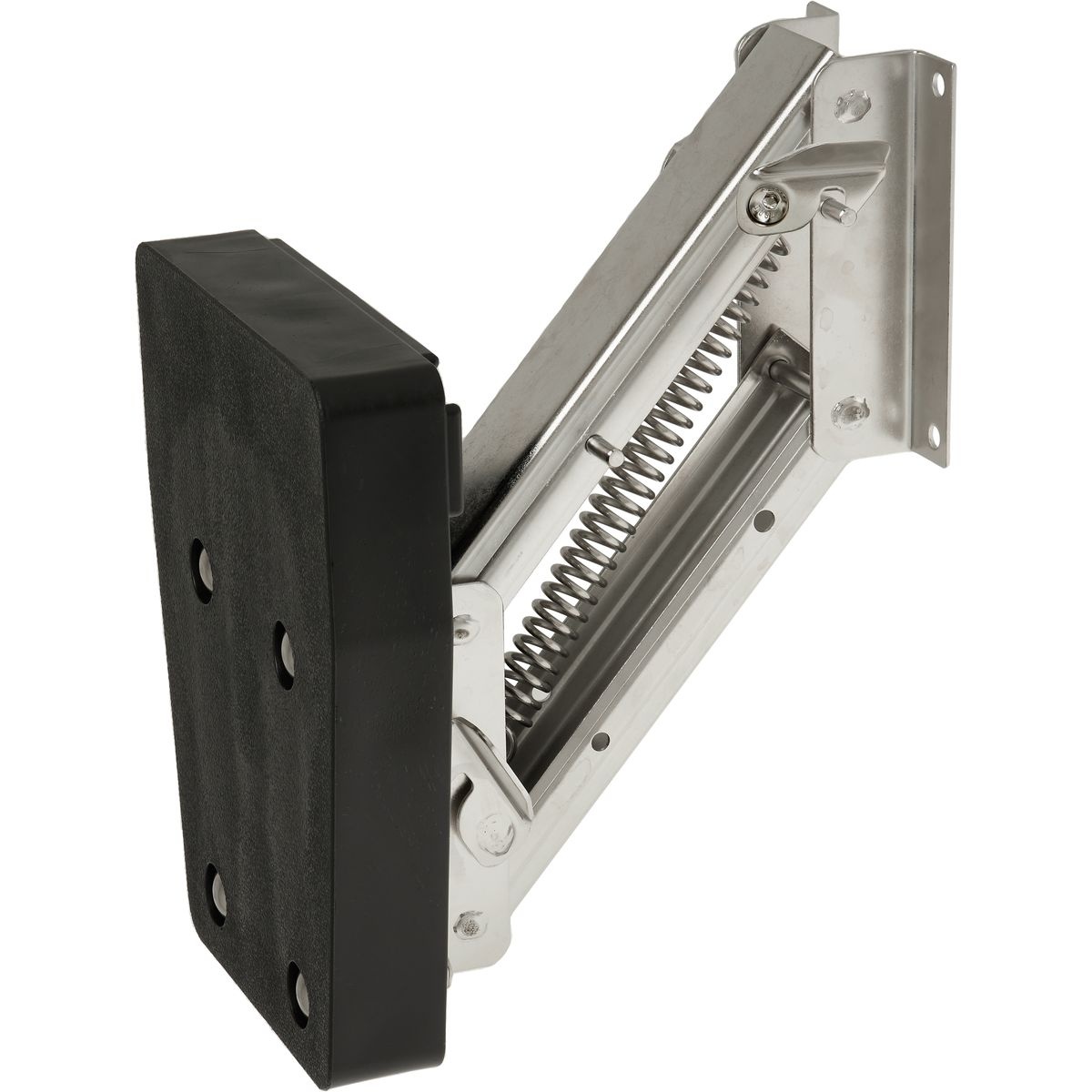

Kicker Motor Bracket Up to 20kg SS with Plastic Pad Black

Product Description:

• Material: Stainless Steel 304 with plastic pad (black)
• For outboard motors up to 20kg / 7.5HP
• 2 adjustment options
• To be secured with 4 M8 bolts
• Bracket remains parallel to the mounting surface in both positions

Dimensions:

• Height of plastic pad: approx. 260mm
• Width of top plastic pad: 205mm
• Width of bottom plastic pad: 160mm
• Pad thickness: 42mm
• Distance between mounting holes: 126mm (height) and approx. 95mm (width)
• Height of mounting plate: 145mm
• Width of mounting plate: 113mm
• Difference in height between lowest and highest position: approx. 375mm

Distances in the lowest position:

• Bottom of pad 185mm below bottom of mounting plate
• Top of pad 70mm below top of mounting plate
• Outer edge of plastic pad to transom: 245mm



Distances in the highest position:

• Bottom of pad 190mm above bottom of mounting plate
• Top of pad 305mm above top of mounting plate
• Outer edge of plastic pad to transom: 375mm

Tip: Combine with an outboard motor safety cable.
