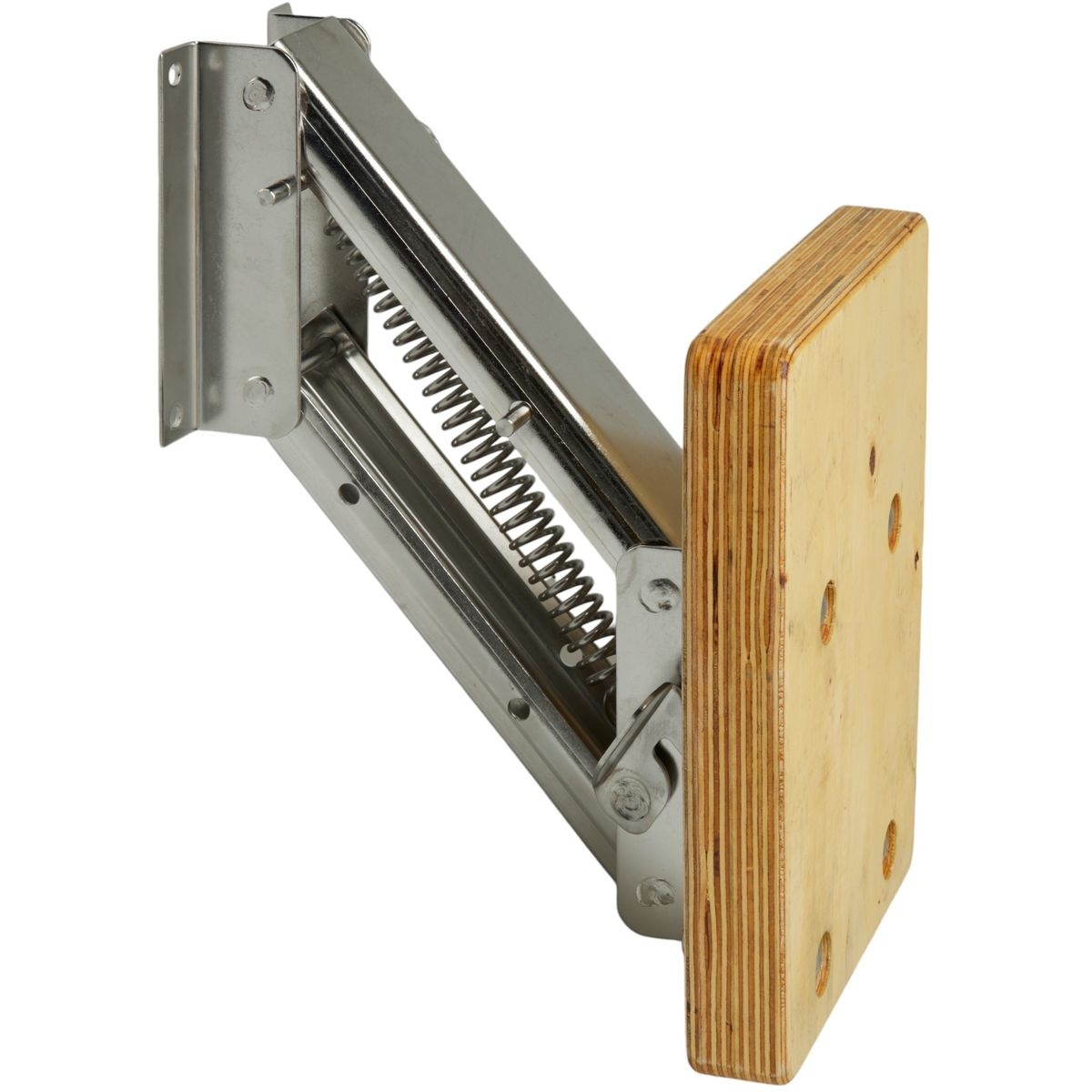

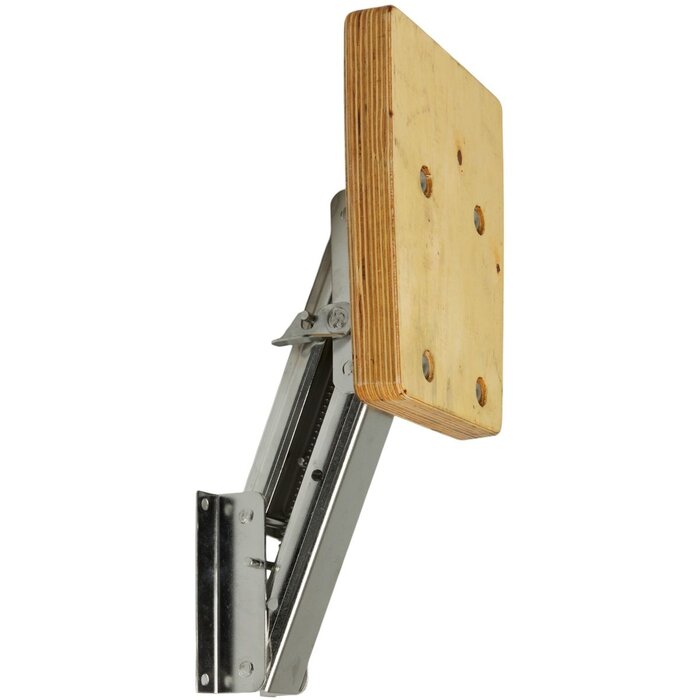

Kicker Motor Bracket Up to 20kg SS with Wooden Pad

Product Description:

• Material: Stainless Steel 304 with wooden pad
• For outboard motors up to 20kg / 7.5HP
• 2 adjustment options
• Number of springs: 1
• To be fastened with 4 M8 bolts
• Plank remains parallel to the mounting in all positions

Dimensions:

• Height of wooden plank: 260mm
• Width of top wooden plank: 205mm
• Width of bottom wooden plank: 185mm
• Plank thickness: 36mm
• Center distance of mounting holes: 126mm (height) and 94mm (width)
• Height of mounting plate: 145mm
• Width of mounting plate: 115mm

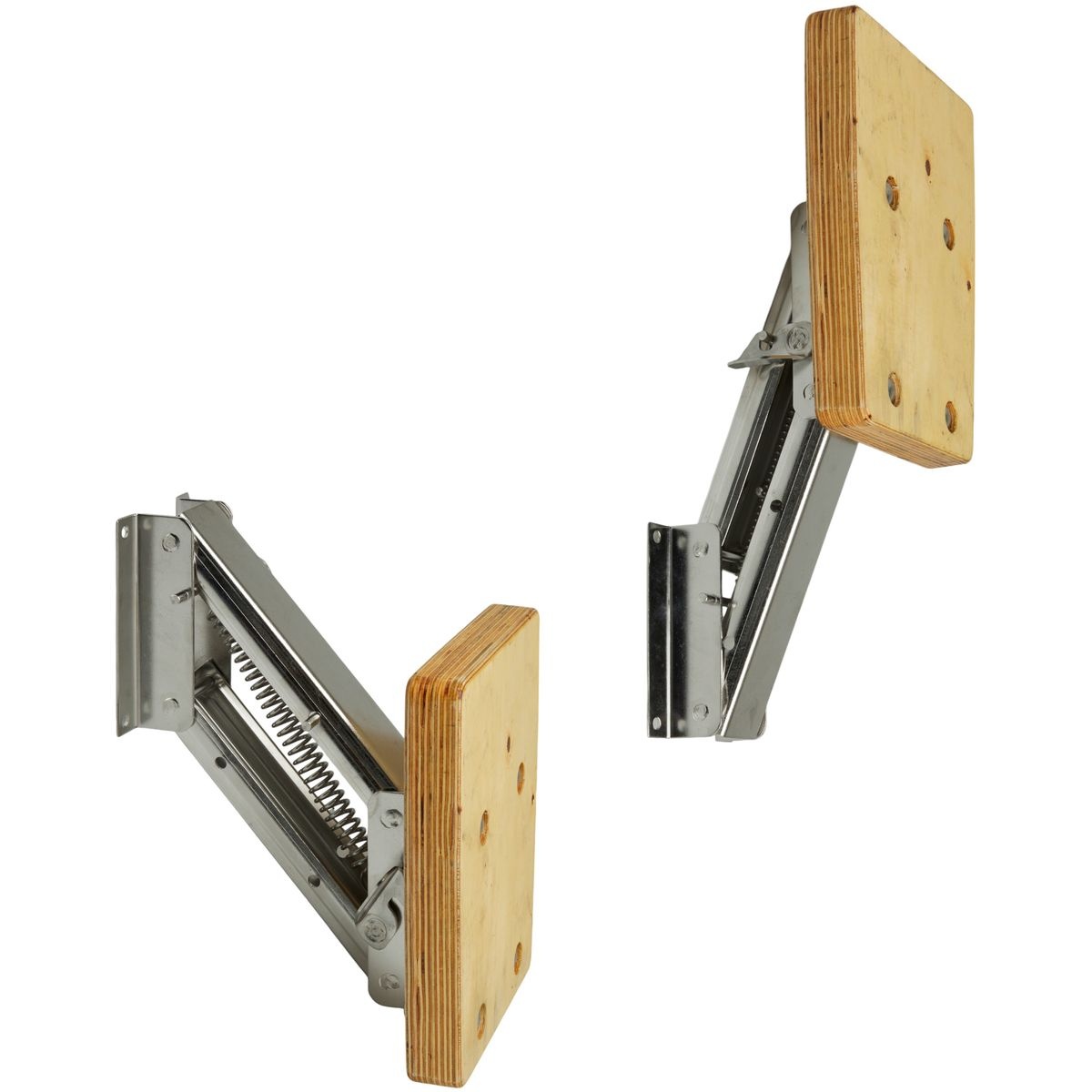

• Height difference between lowest and highest position: approx. 377mm

Distances in the lowest position:

• Bottom of plank 187mm below bottom of mounting plate
• Top of plank 75mm below top of mounting plate
• Outer edge of wooden plank to transom: 240mm



Distances in the highest position:

• Bottom of plank 190mm above bottom of mounting plate
• Top of plank 305mm above top of mounting plate
• Outer edge of wooden plank to transom: 175mm

Tip: Combine with an outboard motor safety cable.
