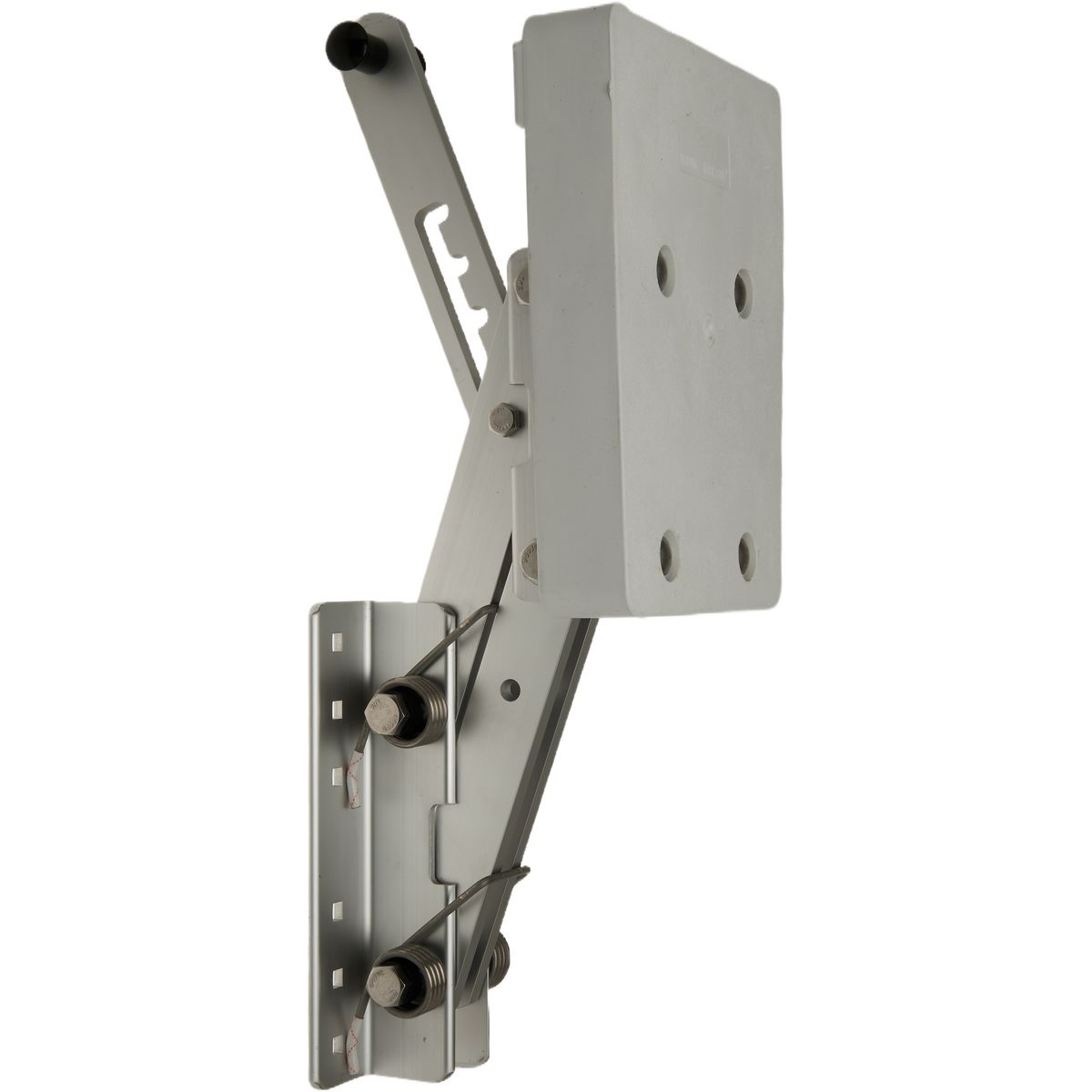

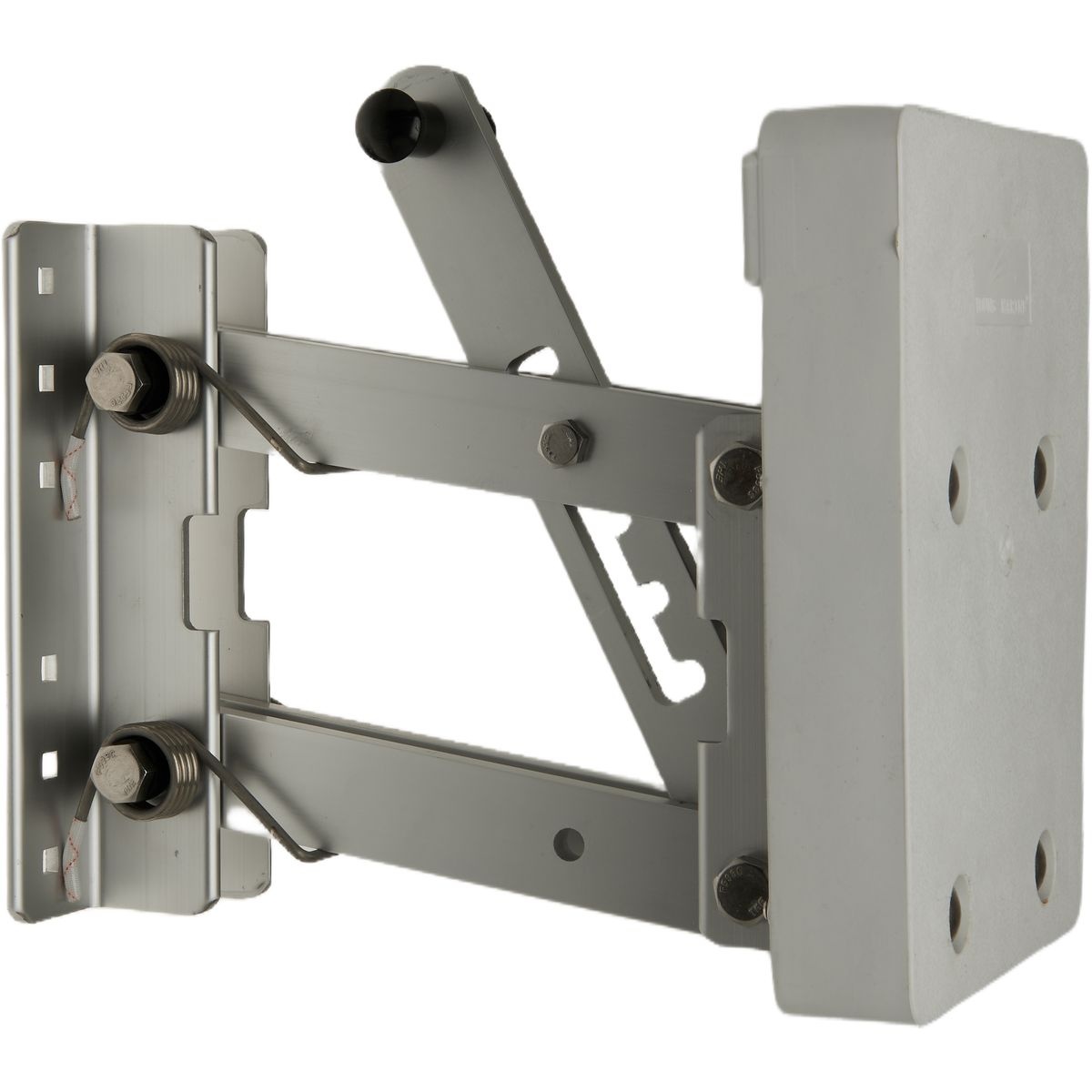

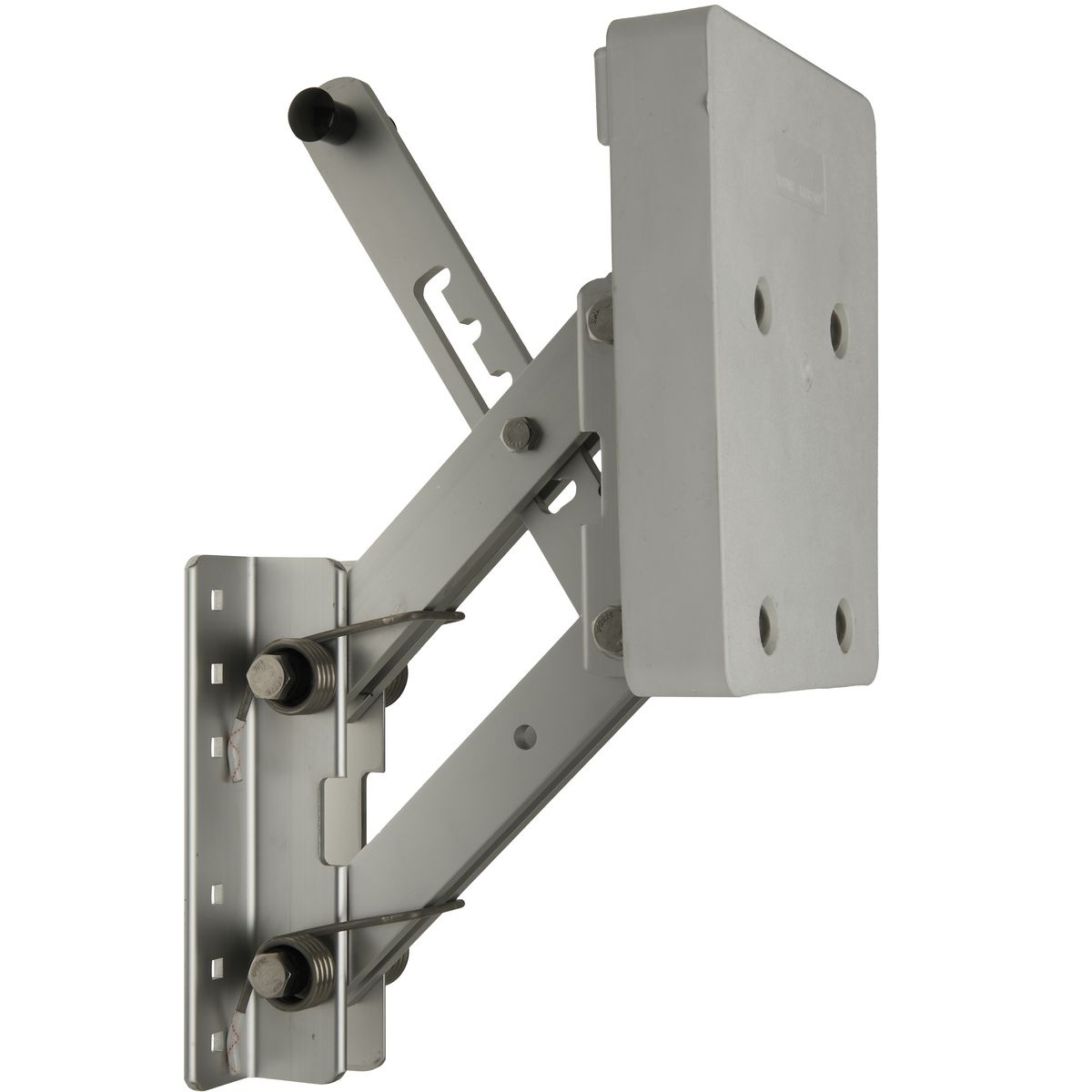

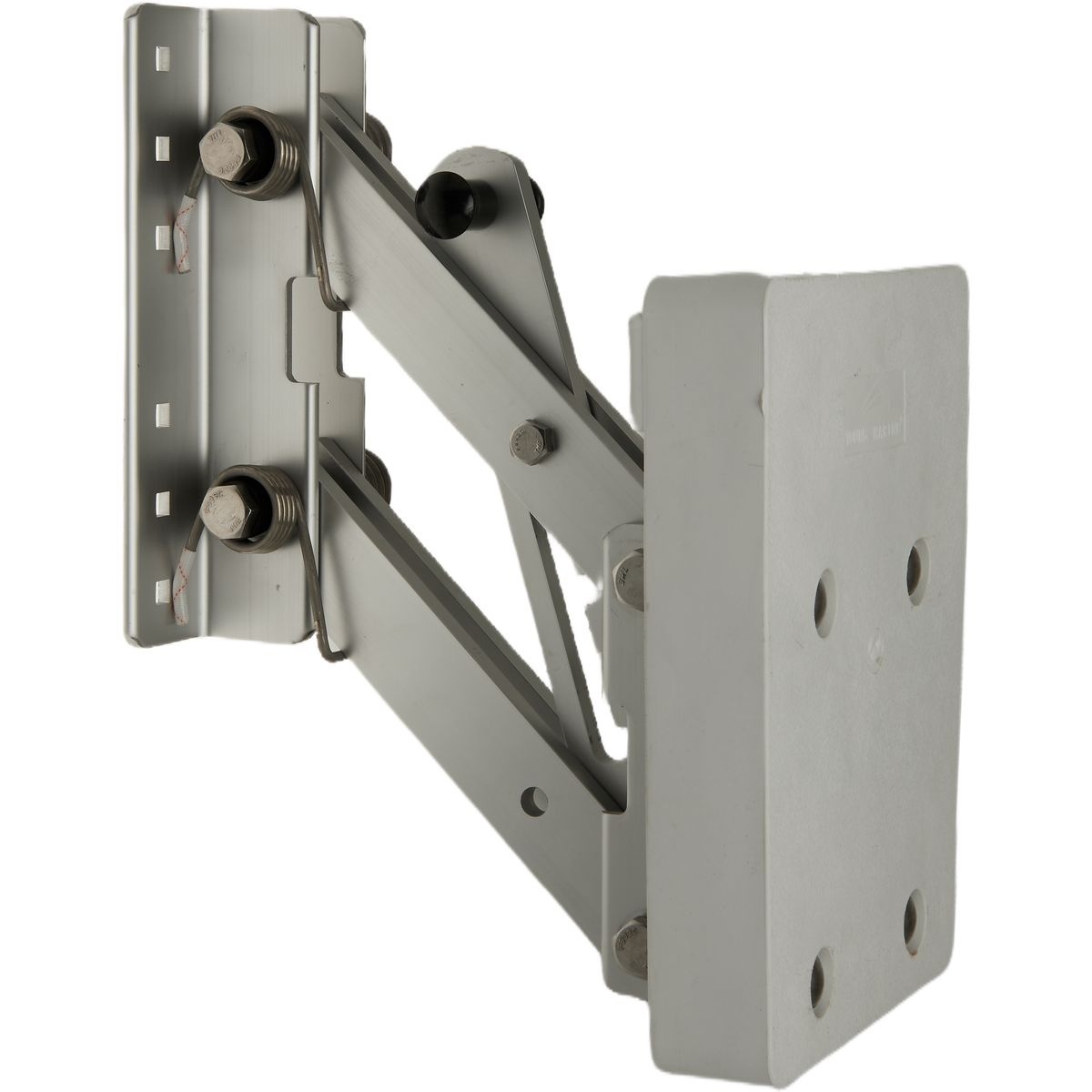

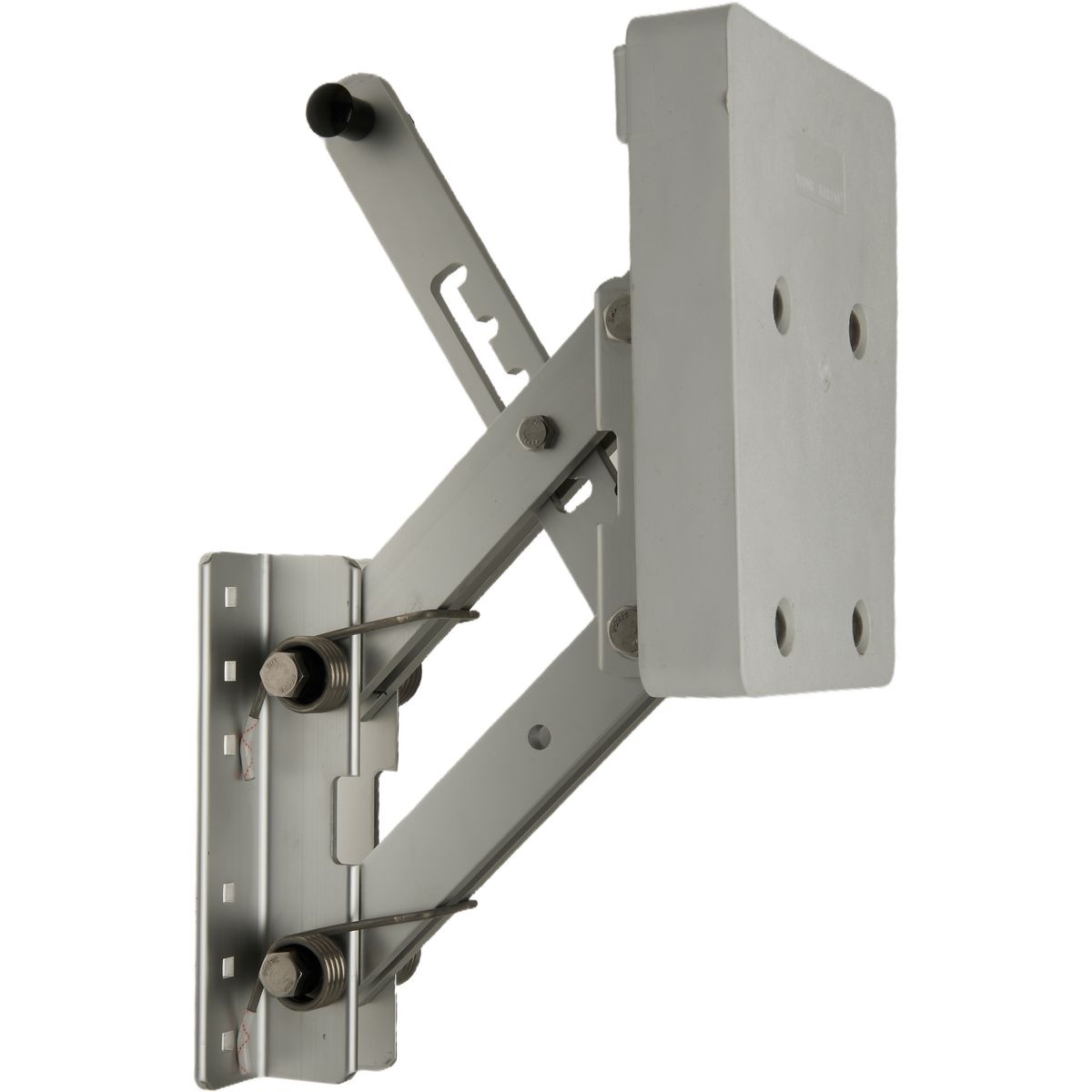

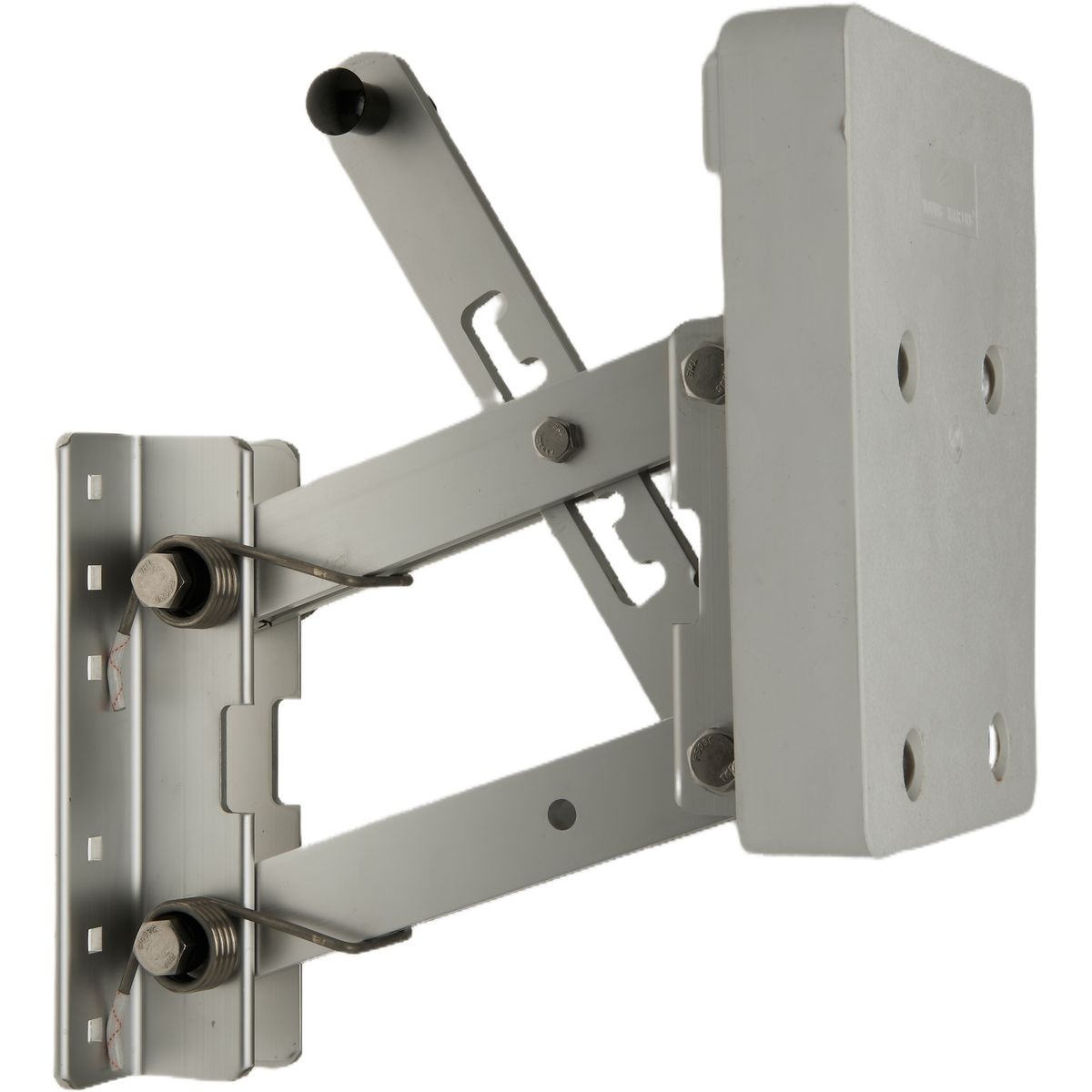

Kicker Motor Bracket Up to 30kg Aluminium with Plastic Pad Black

Product Description:

• Material: Aluminum with plastic pad (white)
• For outboard motors up to 30kg / 15HP

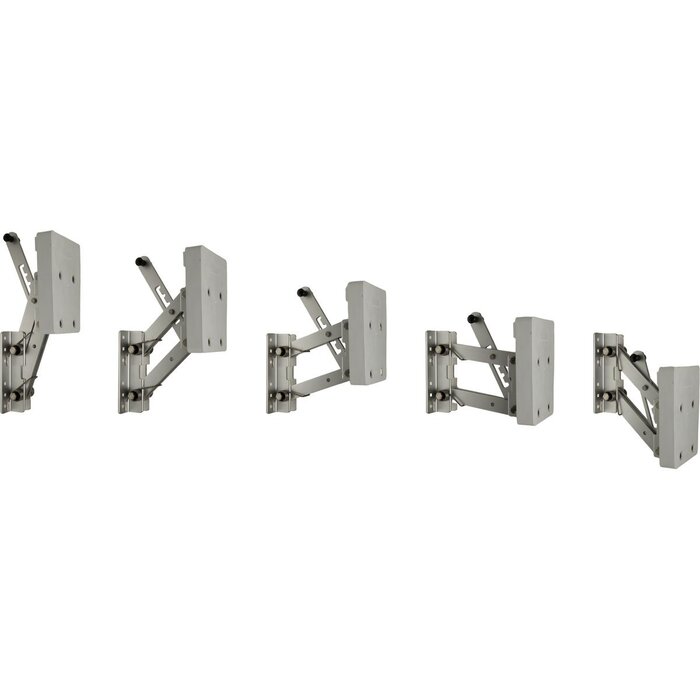

• 5 adjustment options
• To be attached with M8 bolts (minimum 4 and maximum 12)
• Board remains parallel to attachment in all positions

Dimensions:

• Height of plastic board: approx. 260mm
• Width of plastic board top: 205mm
• Width of plastic board bottom: 185mm
• Board thickness: 43mm
• Distance between mounting holes vertically: 32mm and center 64mm (From top to bottom mounting point 192mm)
• Distance between mounting holes horizontally: 96mm
• Height of mounting plate: 230mm
• Width of mounting plate: 134mm
• Height difference lowest and highest position: approx. 346mm

Distances in lowest position:

• Bottom of board 122mm below bottom of mounting plate
• Top of board 90mm below top of mounting plate
• Outer edge of plastic board to transom: 257mm



Distances in highest position:

• Bottom of board 224mm above bottom of mounting plate
• Top of board 255mm above top of mounting plate
• Outer edge of plastic board to transom: 177mm

Tip: Pair with an outboard motor safety cable.
