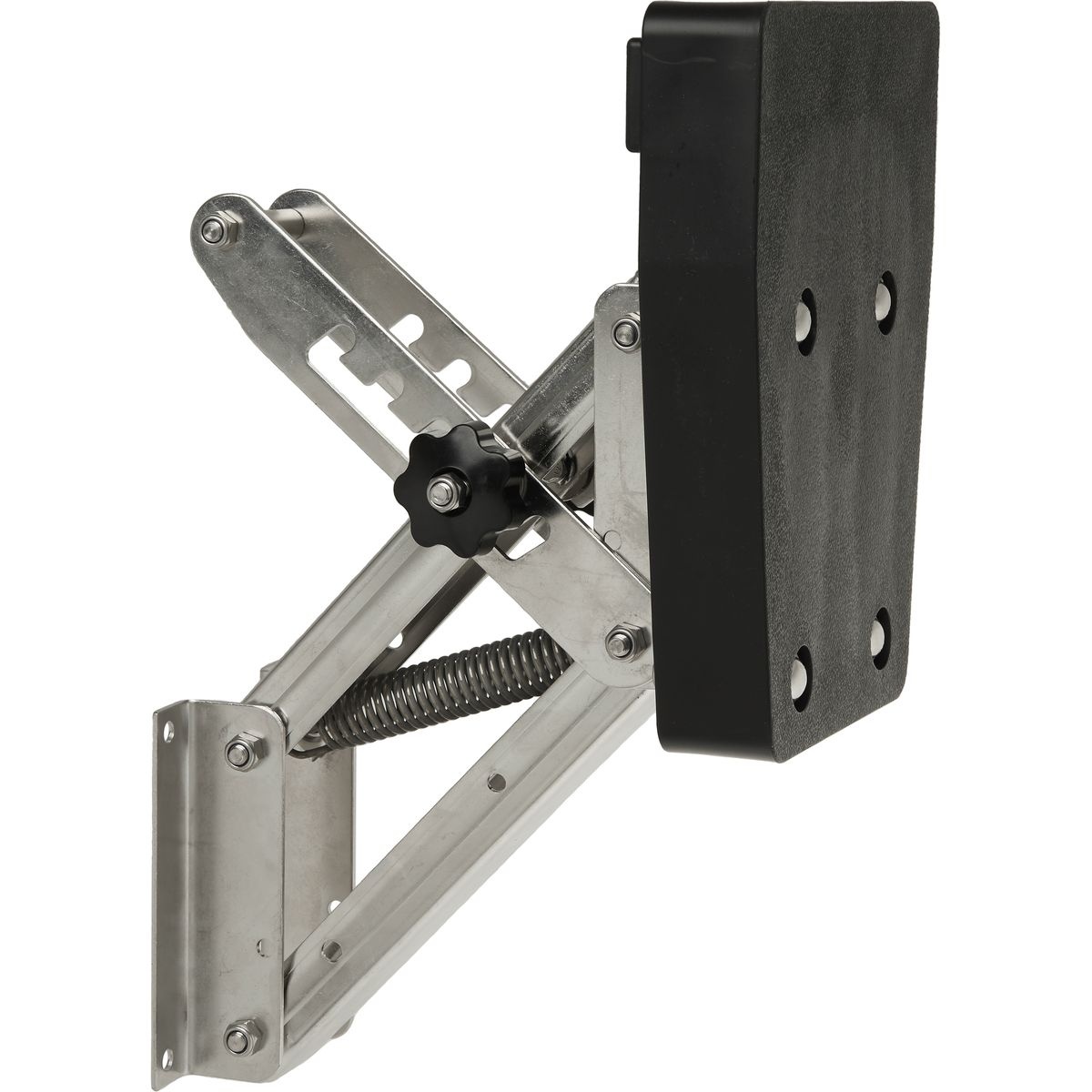

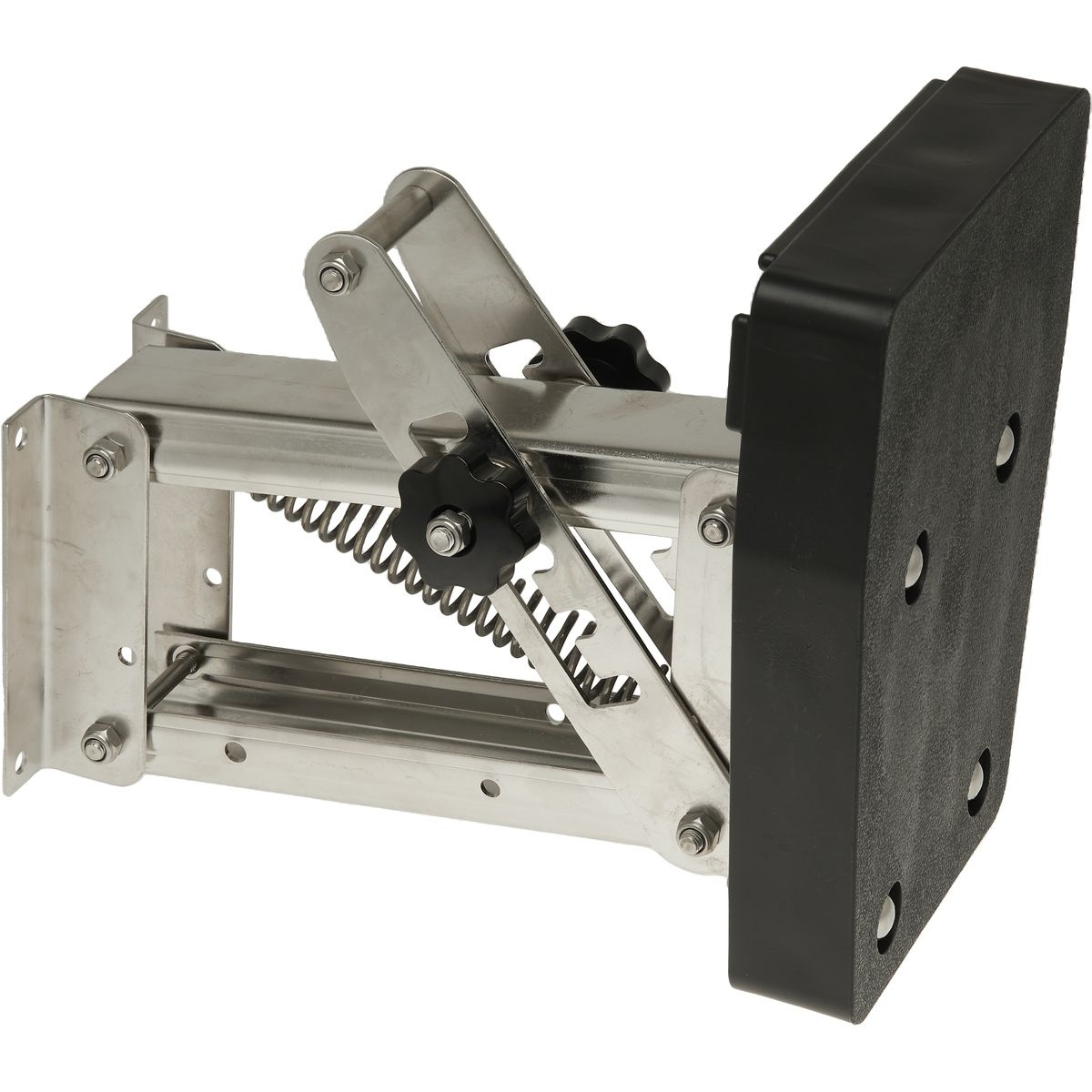

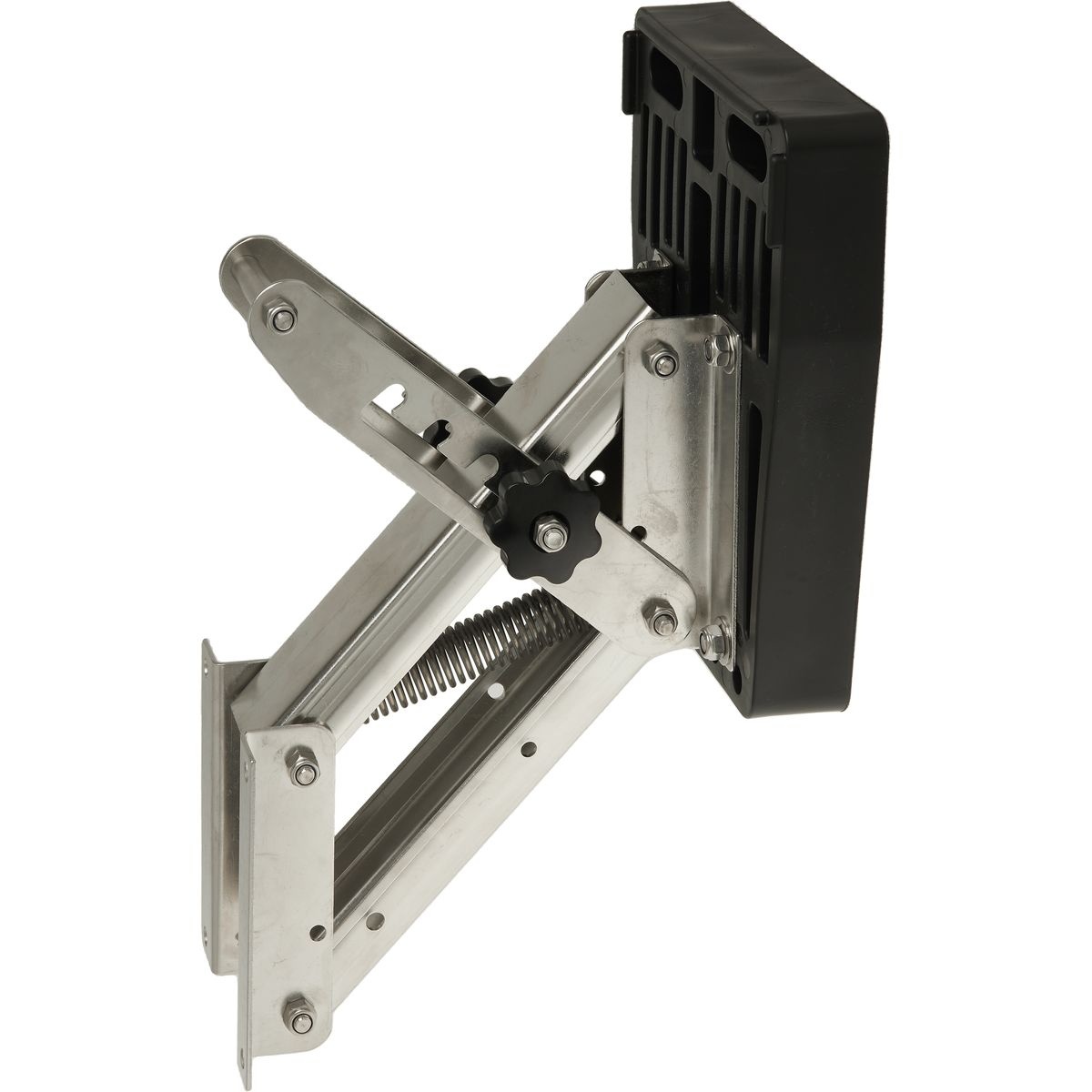

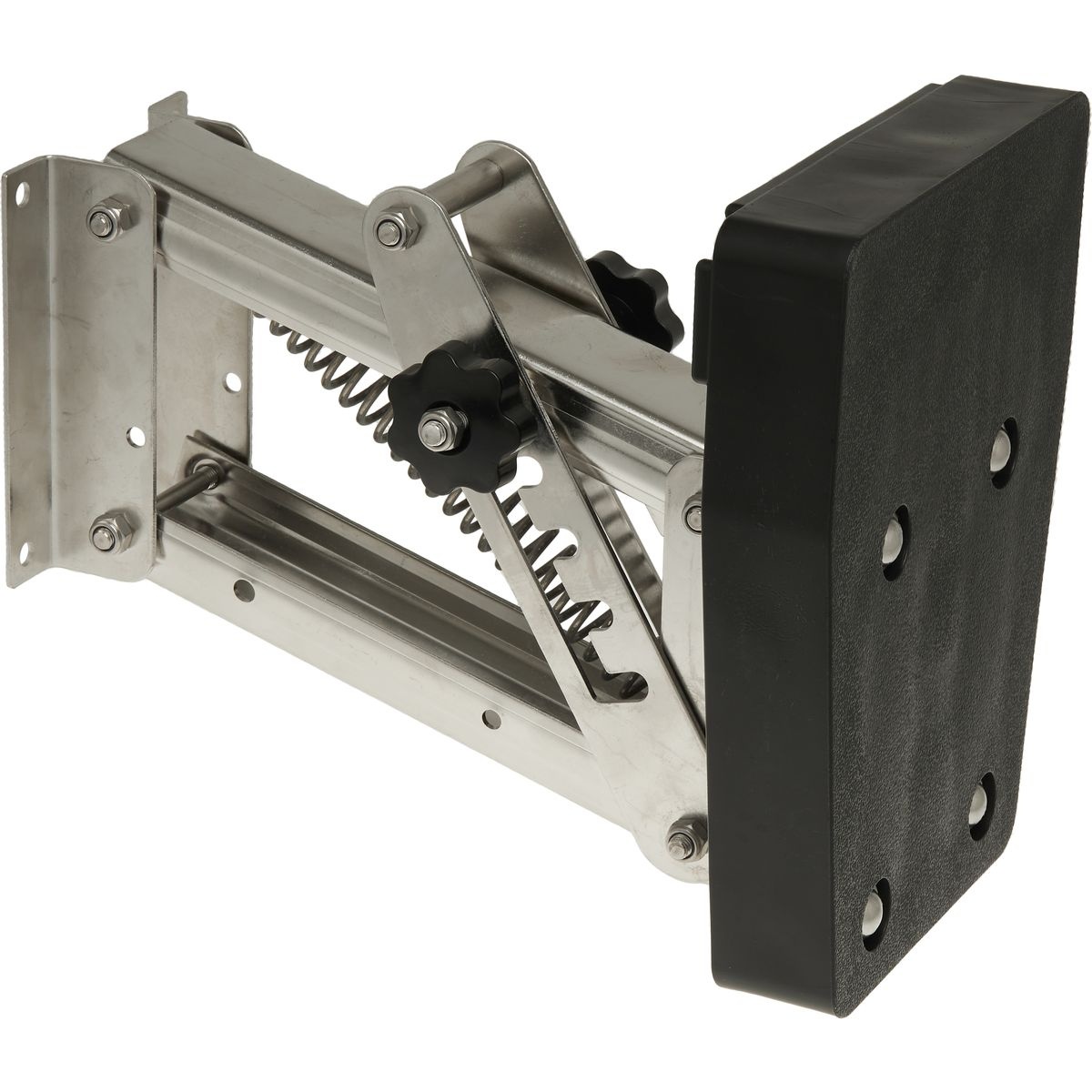

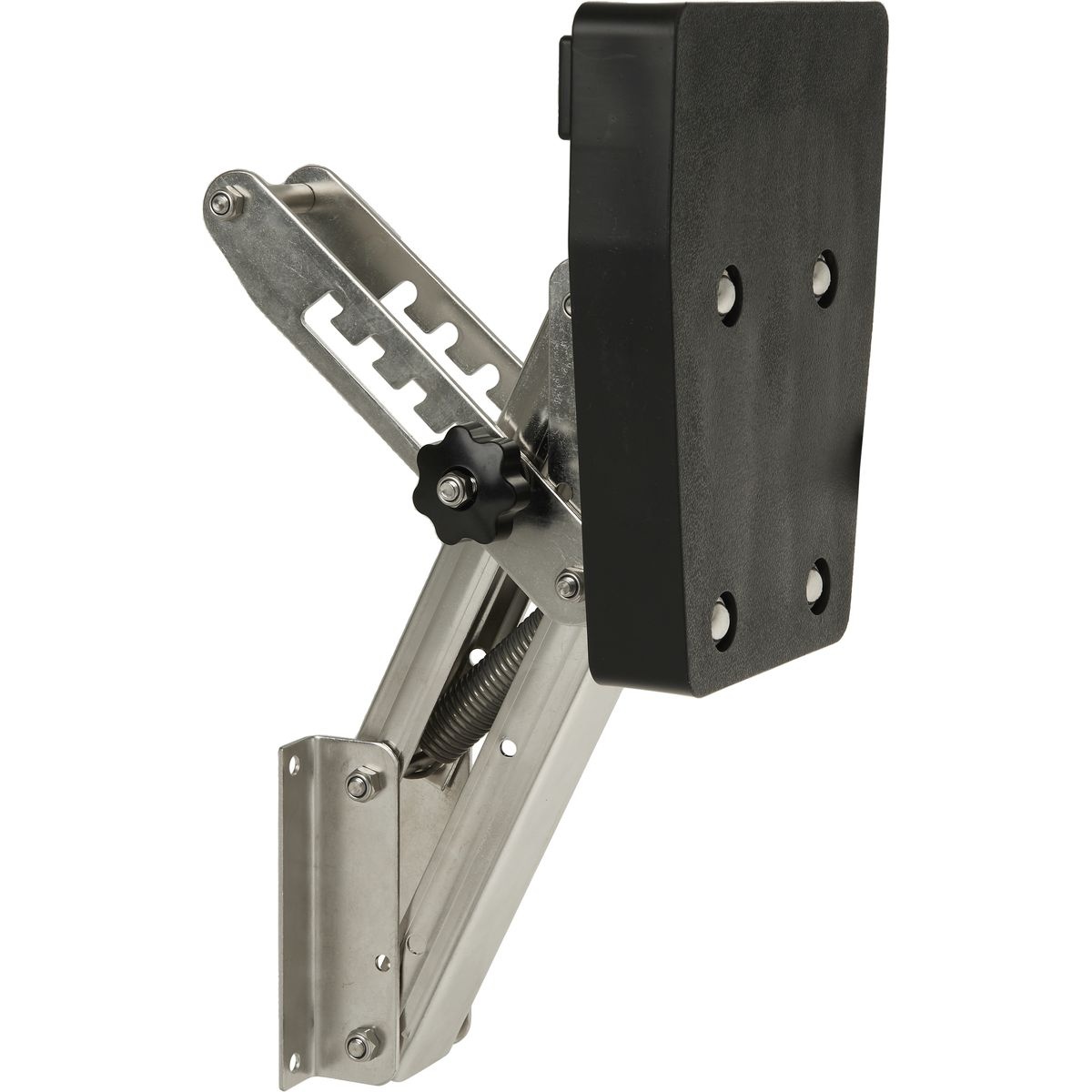

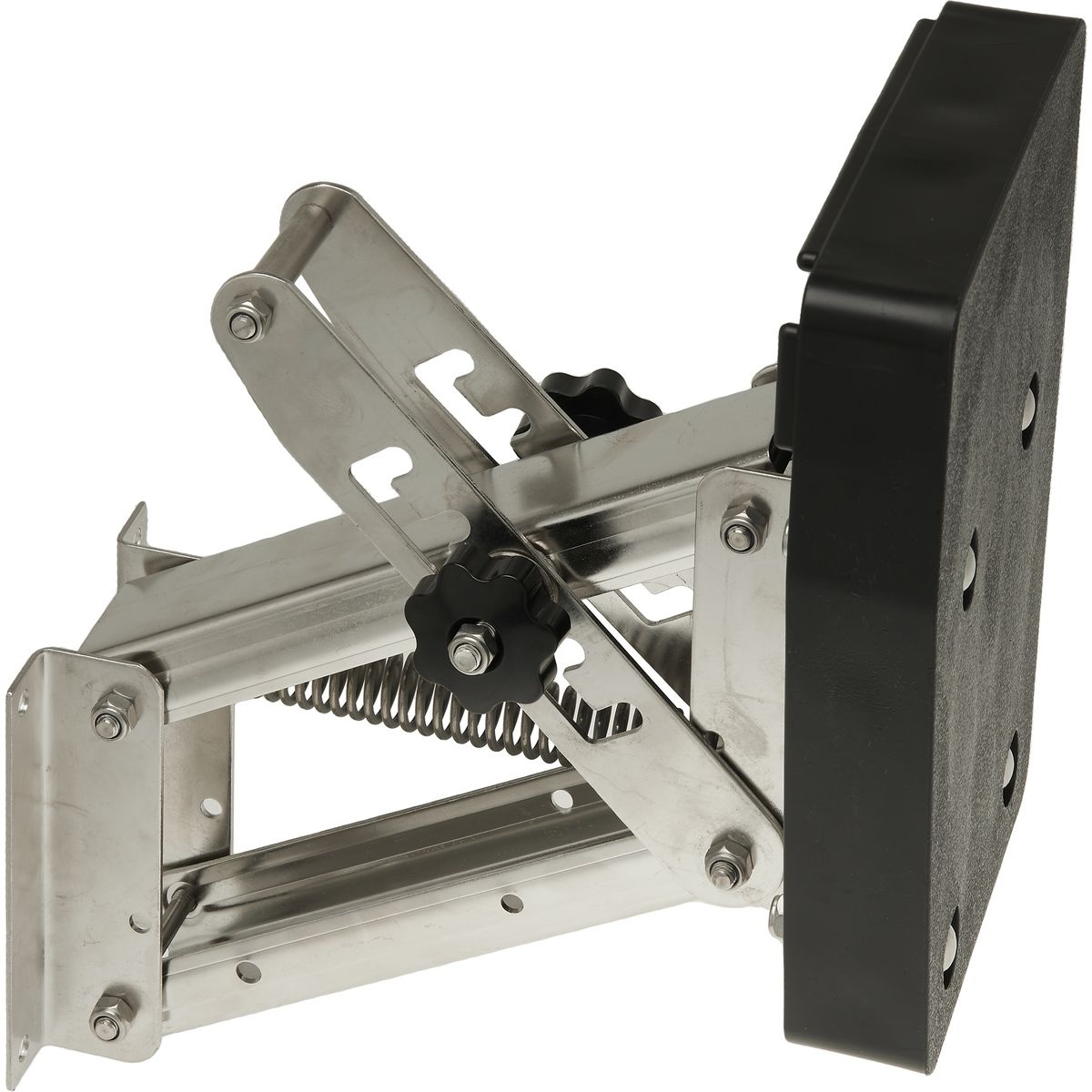

Kicker Motor Bracket Up to 30kg SS with Plastic Pad Black

Product Description:

• Material: Stainless Steel 304 with plastic pad
• For outboard motors up to 30kg / 15HP

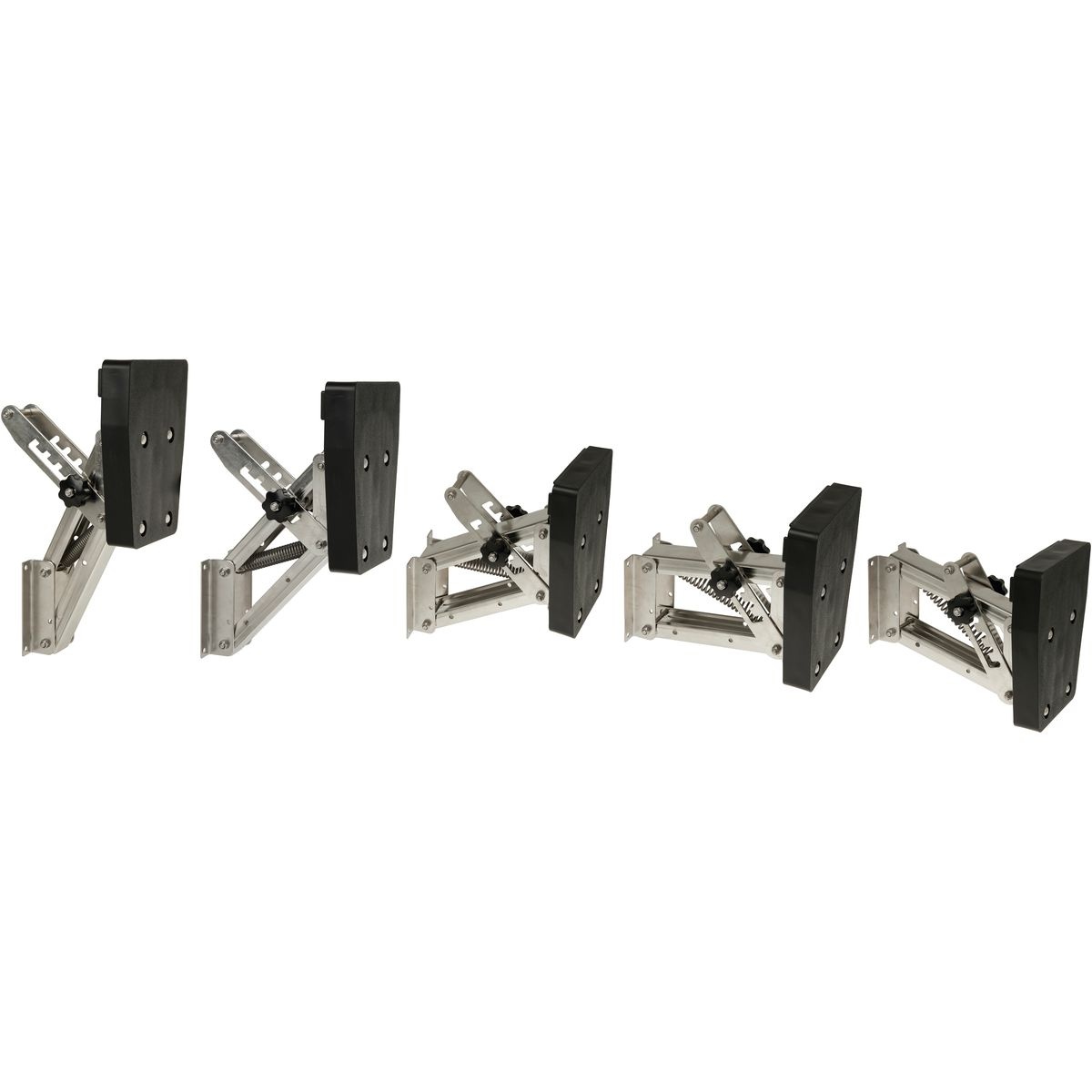

• 5 adjustment options
• To be mounted with 4 M8 bolts
• Board remains parallel to mounting in all positions

Dimensions:

• Height of plastic board: approx. 260mm
• Width of plastic board top: 205mm
• Width of plastic board bottom: 160mm
• Board thickness: 42mm
• Center distance of mounting holes: 126mm (height) and approx. 95mm (width)
• Height of mounting plate: 145mm
• Width of mounting plate: 113mm
• Height difference lowest and highest position: approx. 270mm

Distances in lowest position:

• Bottom of board 80mm below bottom of mounting plate
• Top of board 35mm above top of mounting plate
• Outer edge of plastic board to transom: 315mm



Distances in highest position:

• Bottom of board 190mm above bottom of mounting plate
• Top of board 305mm above top of mounting plate
• Outer edge of plastic board to transom: 275mm

Tip: Pair with an outboard motor safety cable.
