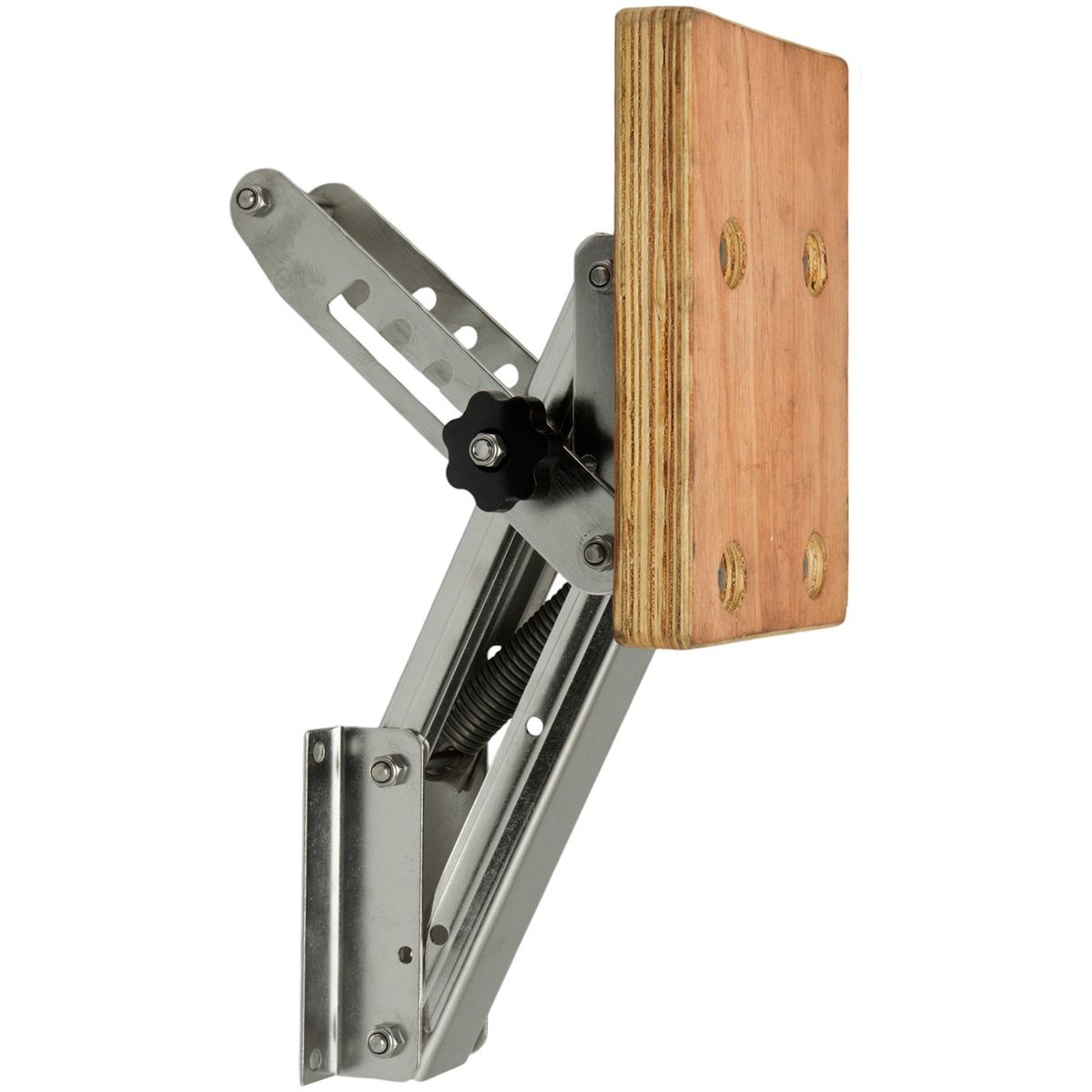

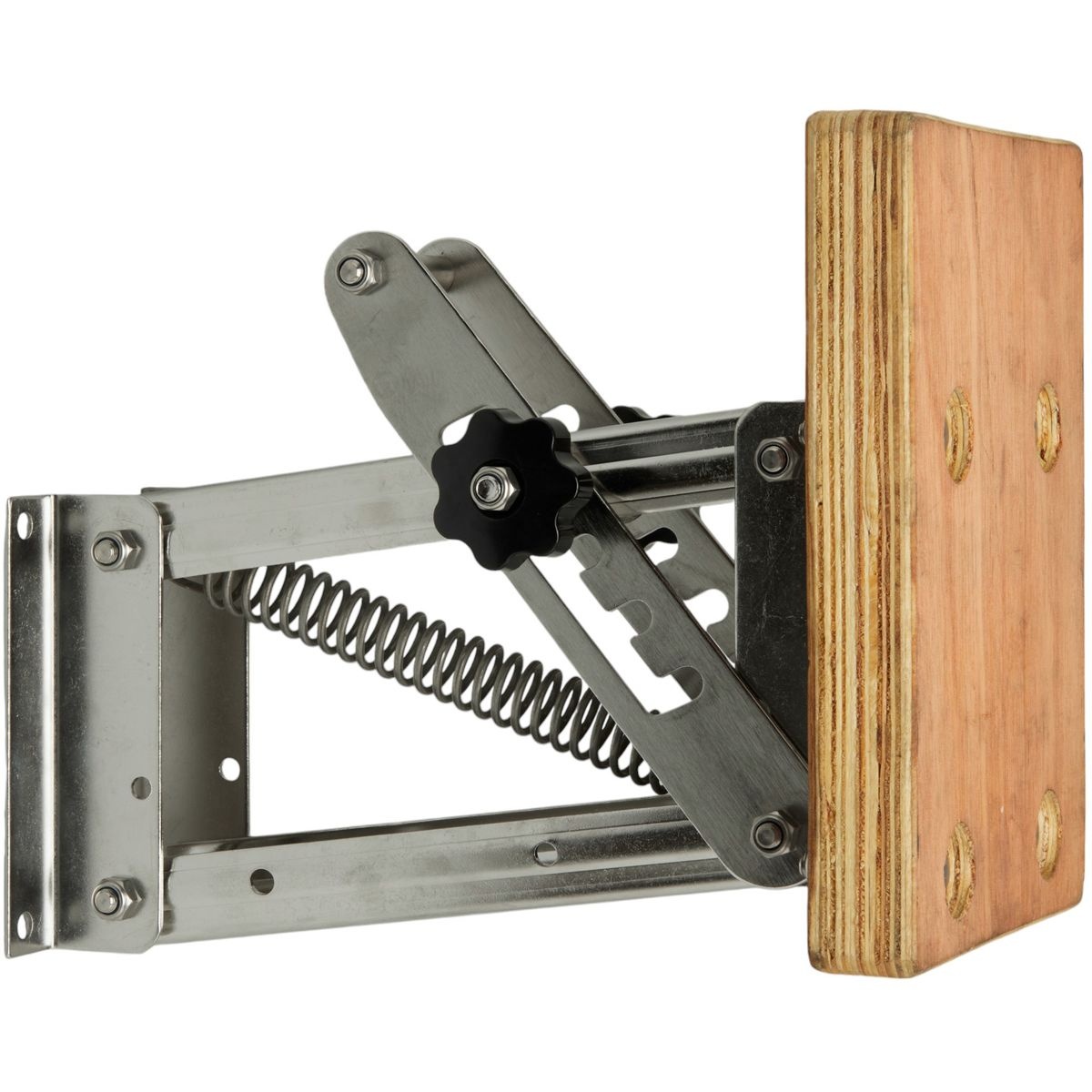

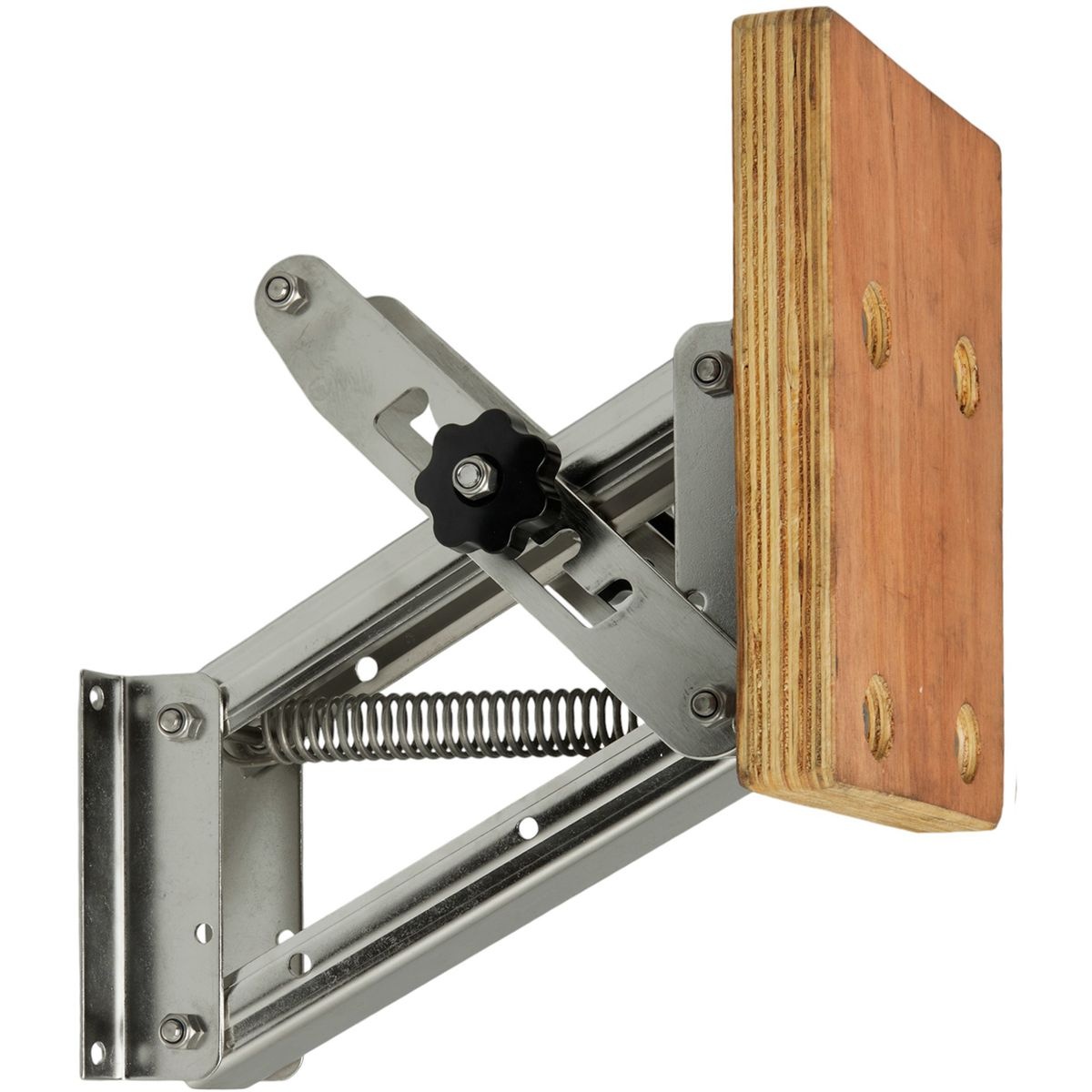

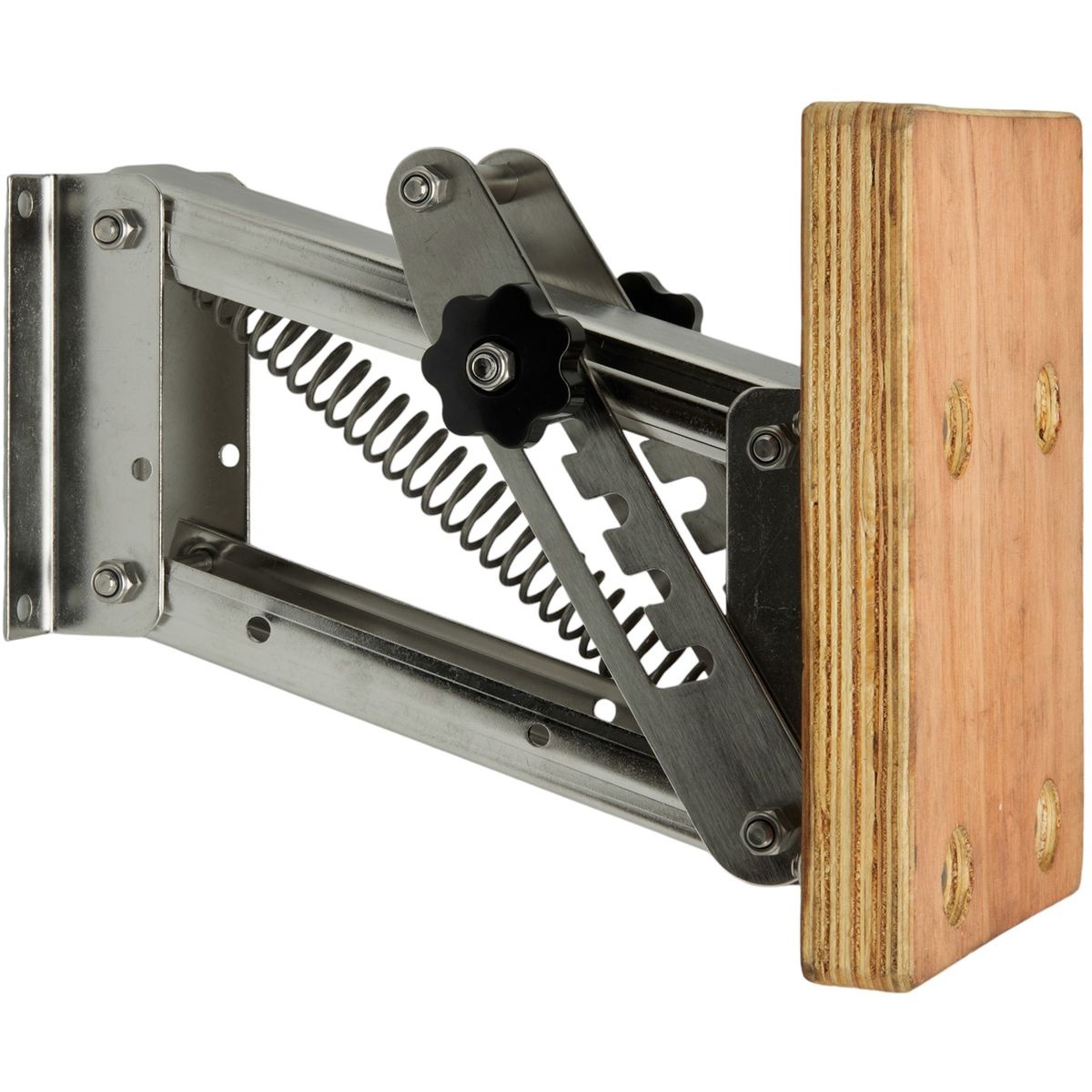

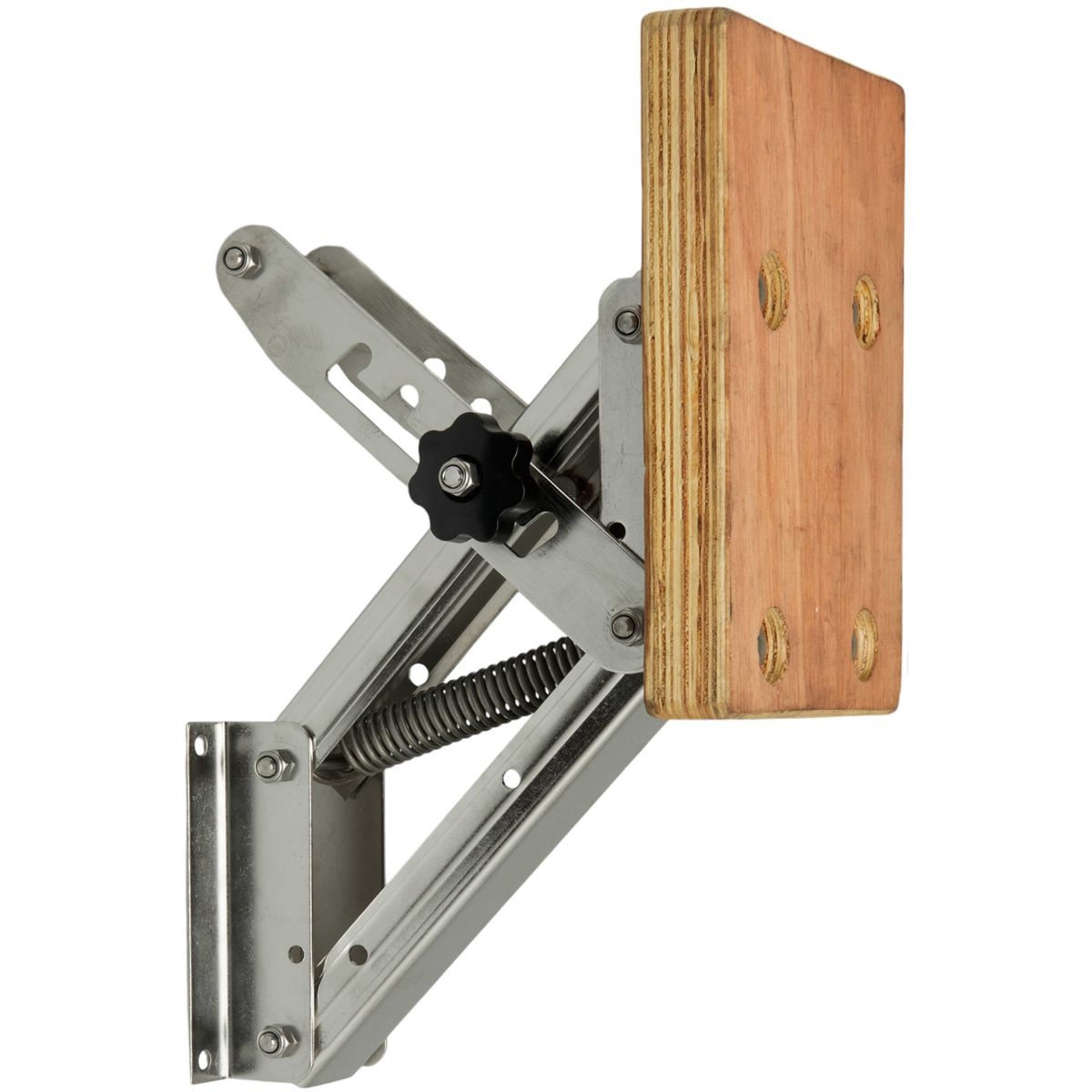

Kicker Motor Bracket Up to 30kg SS with Wooden Pad

Product Description:

• Material: Stainless Steel 304 with wooden pad
• For outboard motors up to 30kg / 15HP

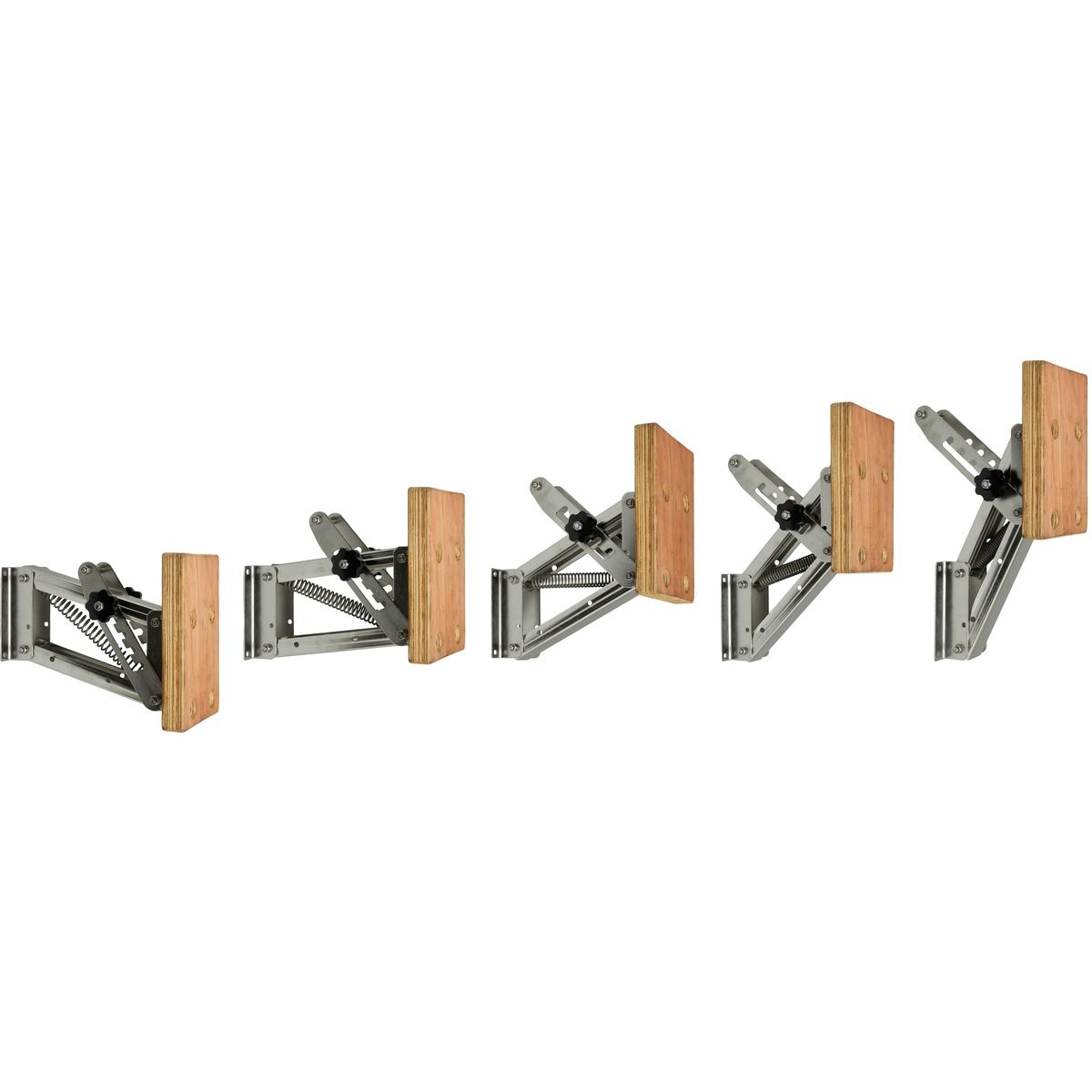

• 5 adjustment options
• Number of springs: 1
• To be attached with 4 M8 bolts
• Pad remains parallel to attachment in all positions

Dimensions:

• Height of wooden pad: 245mm
• Width of wooden pad top: 180mm
• Width of wooden pad bottom: 180mm
• Pad thickness: 33mm
• Center distance of attachment holes: 126mm (height) and 95mm (width)
• Height of attachment plate: 145mm
• Width of attachment plate: 115mm
• Height difference lowest and highest position: approx. 269mm

Distances in lowest position:

• Bottom of pad 79mm below bottom of attachment plate
• Top of pad 18mm above top of attachment plate
• Outer edge of wooden pad to transom: 300mm



Distances in highest position:

• Bottom of pad 190mm above bottom of attachment plate
• Top of pad 287mm above top of attachment plate
• Outer edge of wooden pad to transom: 180mm

Tip: Pair with an outboard motor safety cable.
