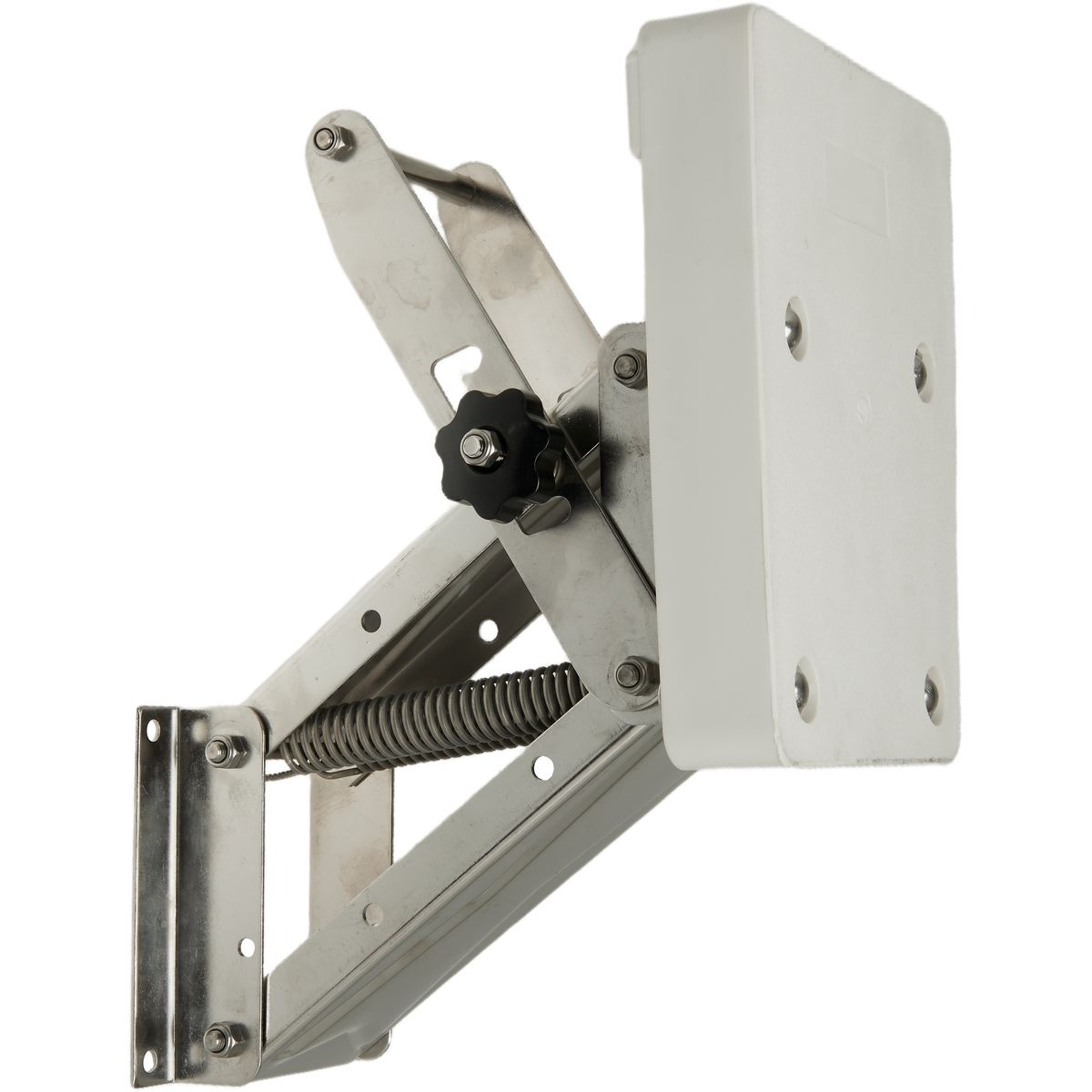

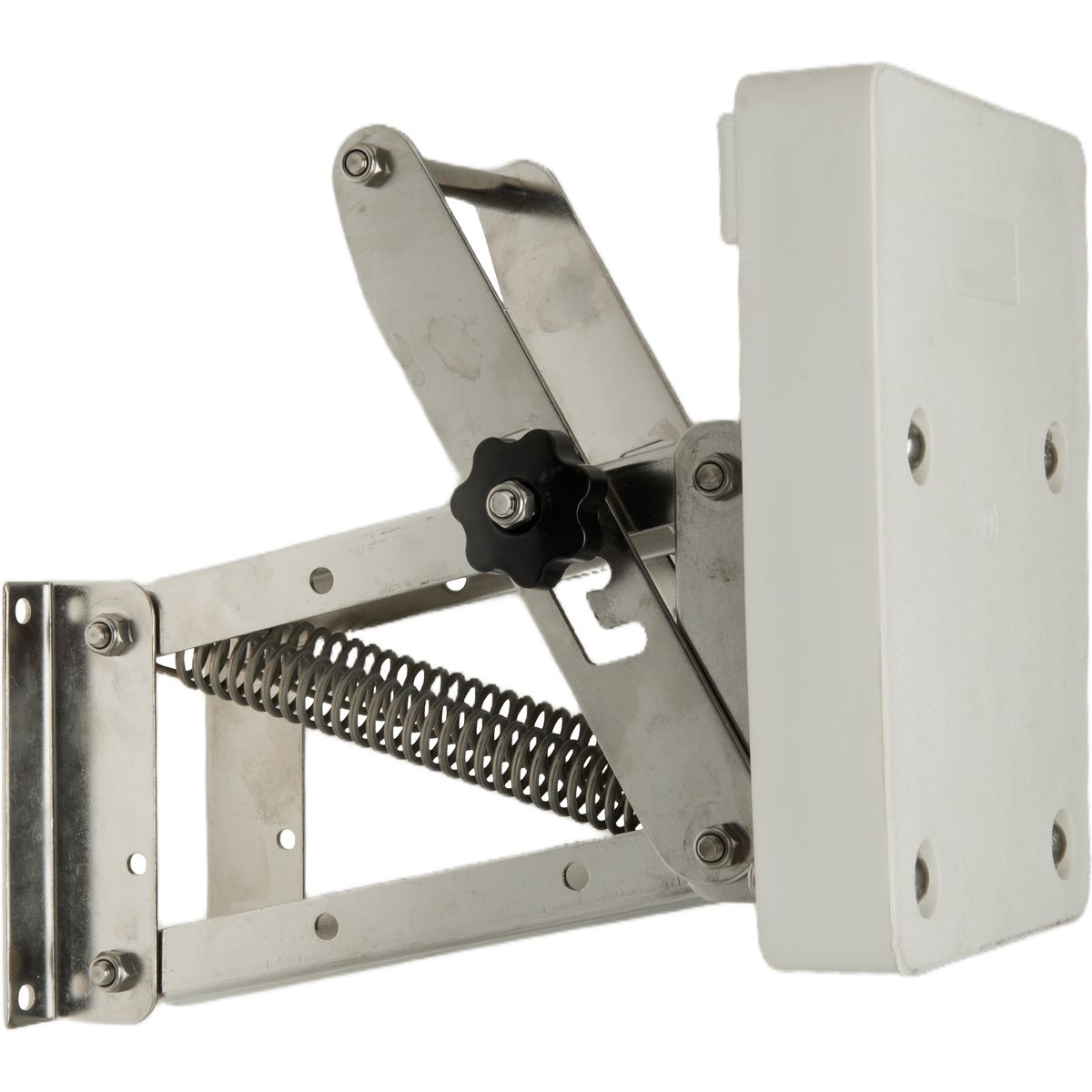

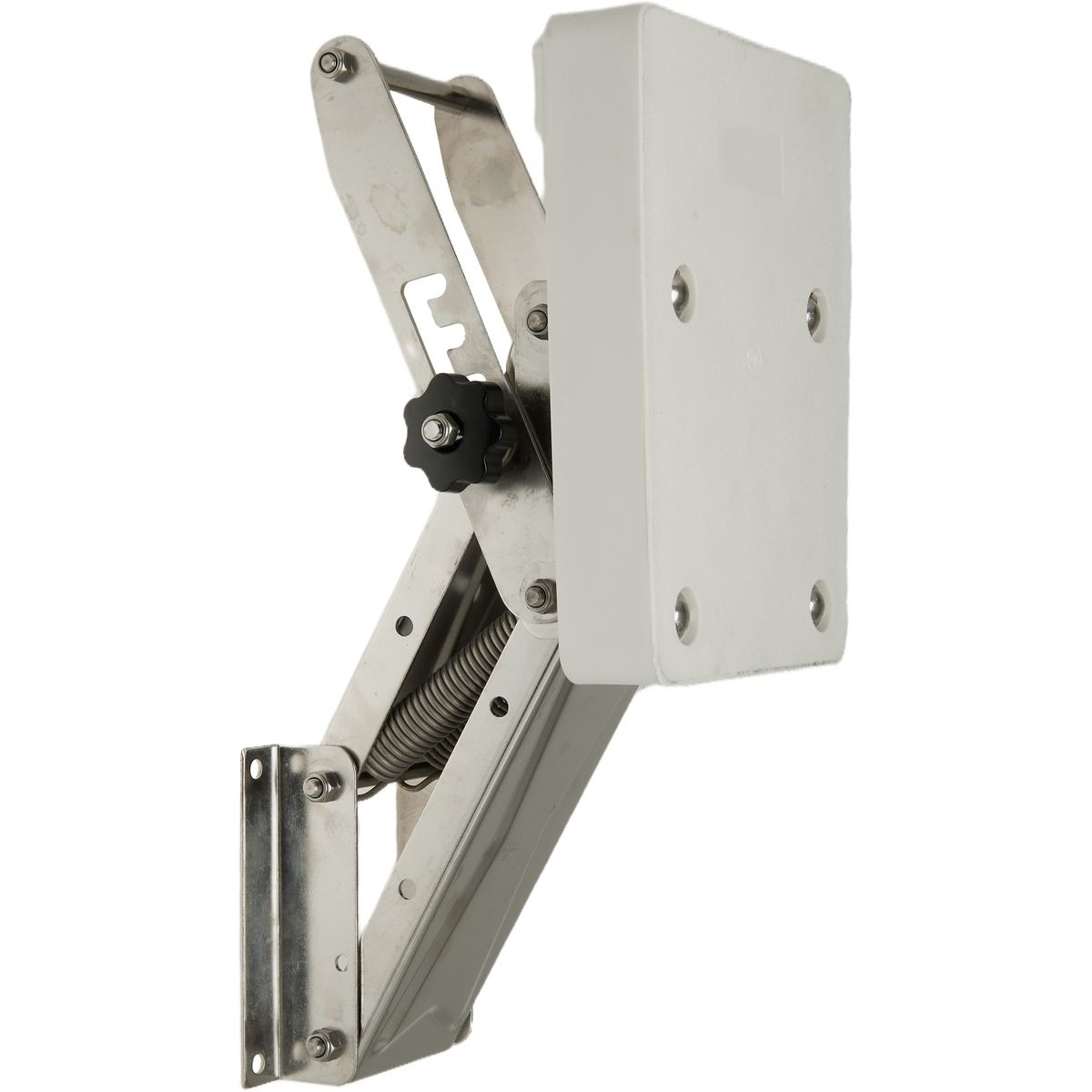

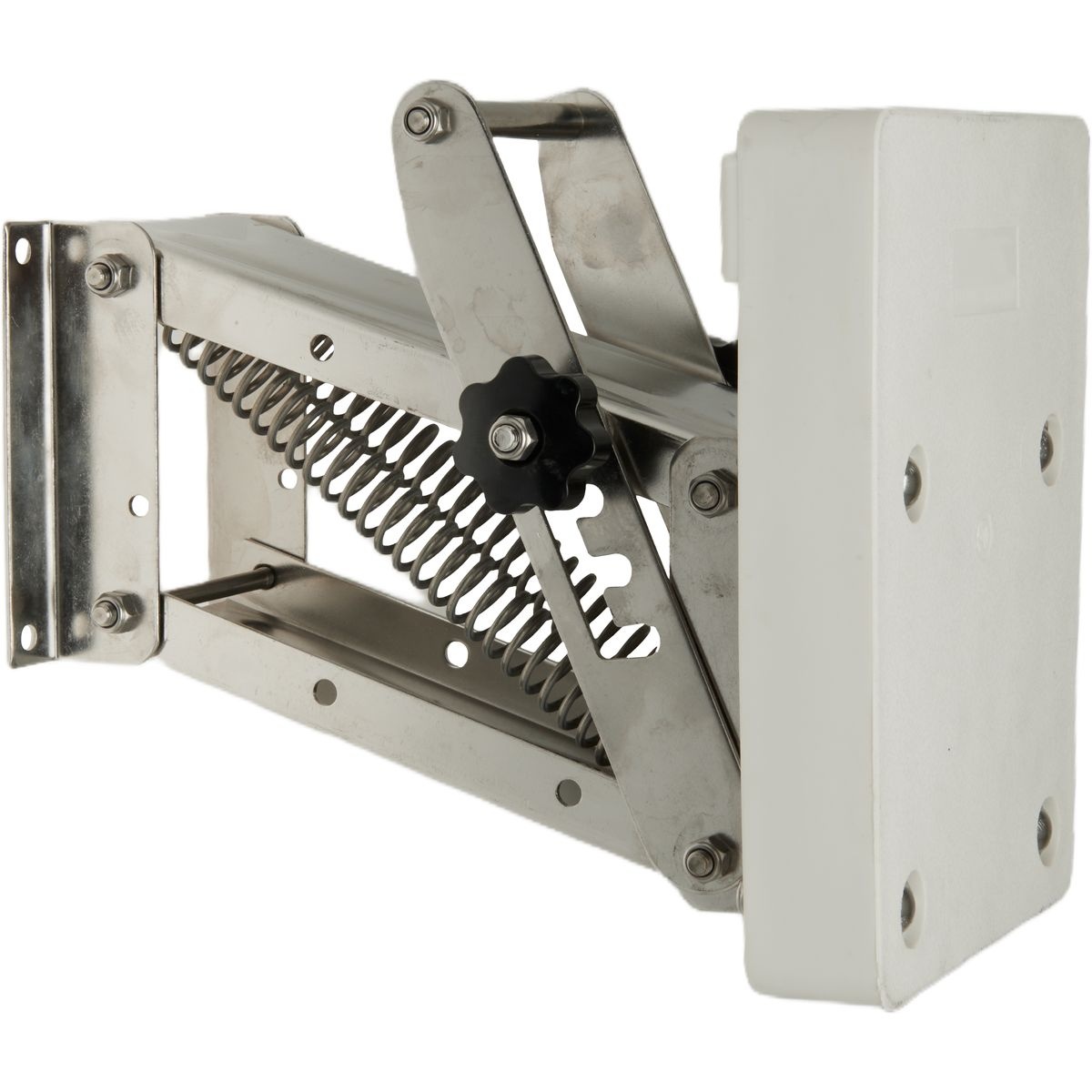

Kicker Motor Bracket Up to 40kg SS with Plastic Pad White

Product Description:

• Material: Stainless Steel 304 with plastic pad (white)
• For outboard motors up to 40kg / 20HP

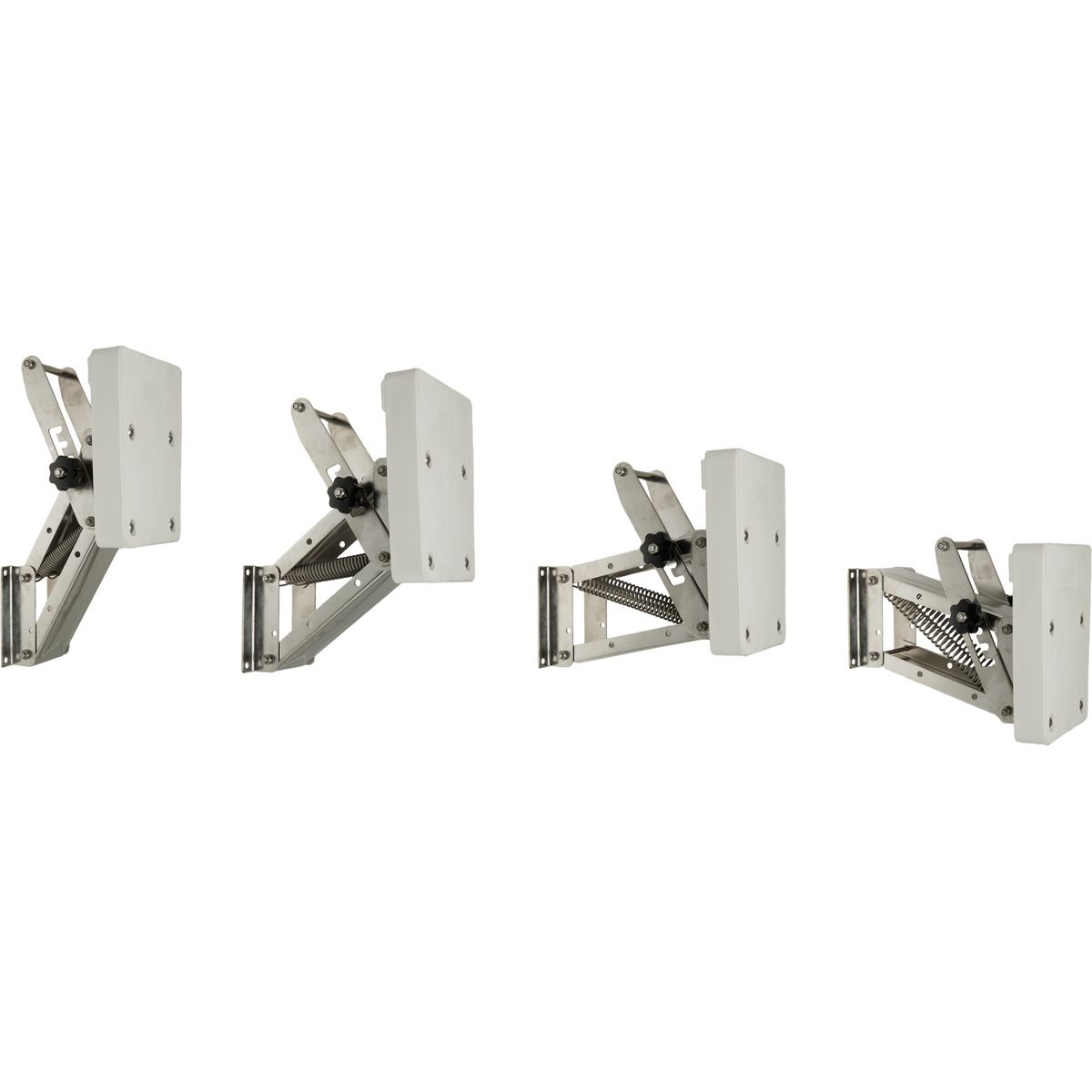

• 4 adjustment options
• To be attached with 4 M8 bolts
• Board remains parallel to attachment in all positions

Dimensions:

• Height of plastic board: approx. 260mm
• Width of plastic board top: 205mm
• Width of plastic board bottom: 185mm
• Board thickness: 42mm
• Center distance of mounting holes: 126mm (height) and approx. 131mm (width)
• Height of mounting plate: 145mm
• Width of mounting plate: 150mm
• Height difference between lowest and highest position: approx. 275mm

Distances in lowest position:

• Bottom of board 95mm below bottom of mounting plate
• Top of board 15mm above top of mounting plate
• Outer side of plastic board to transom: 245mm



Distances in highest position:

• Bottom of board 180mm above bottom of mounting plate
• Top of board 290mm above top of mounting plate
• Outer side of plastic board to transom: 210mm

Tip: Pair with an outboard motor safety cable.
