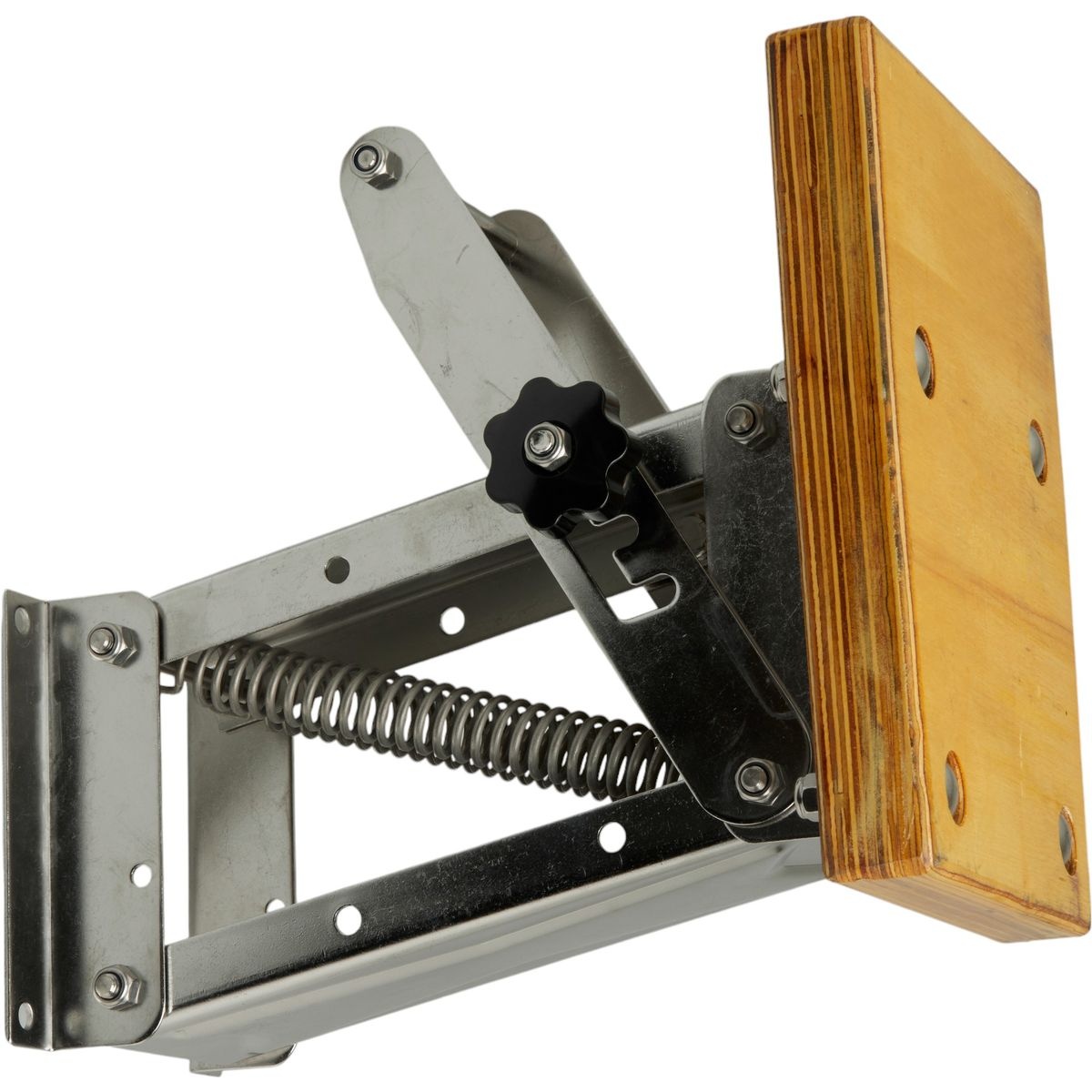

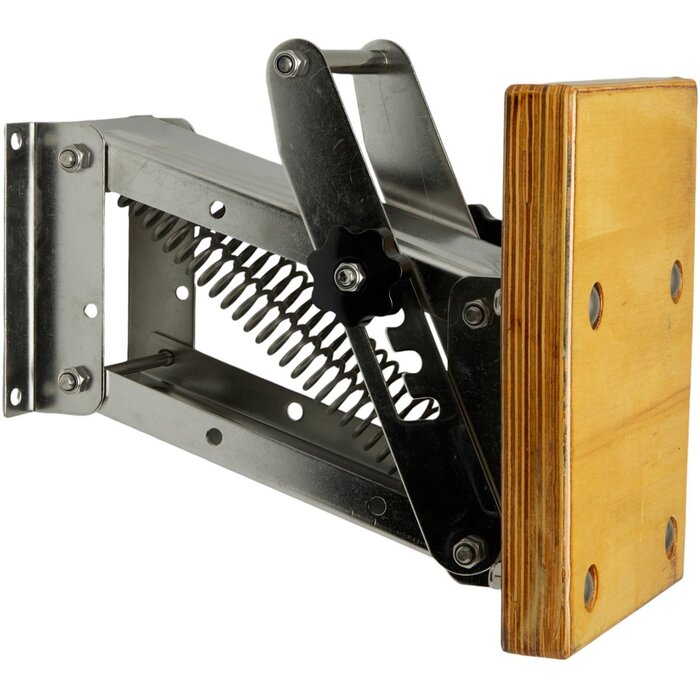

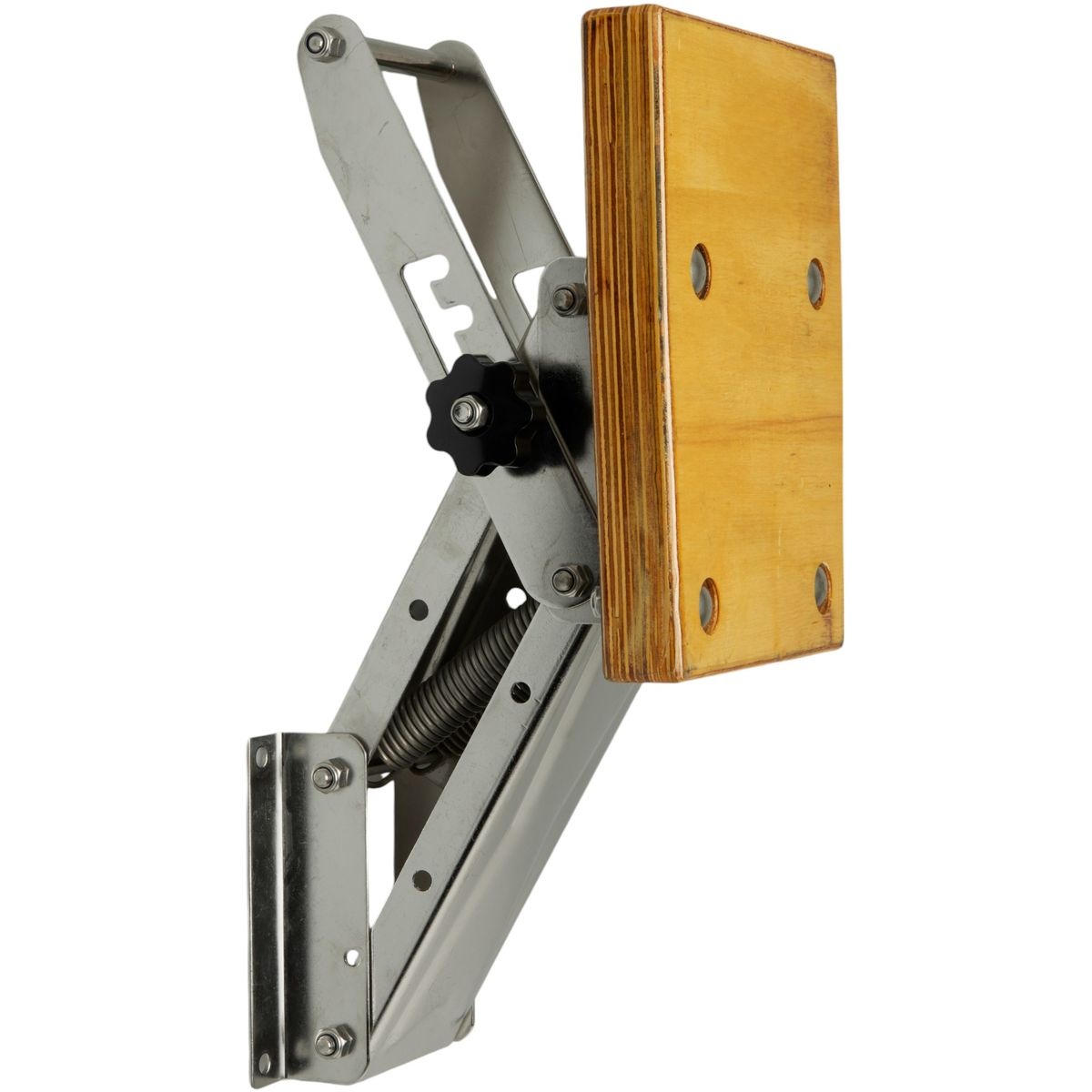

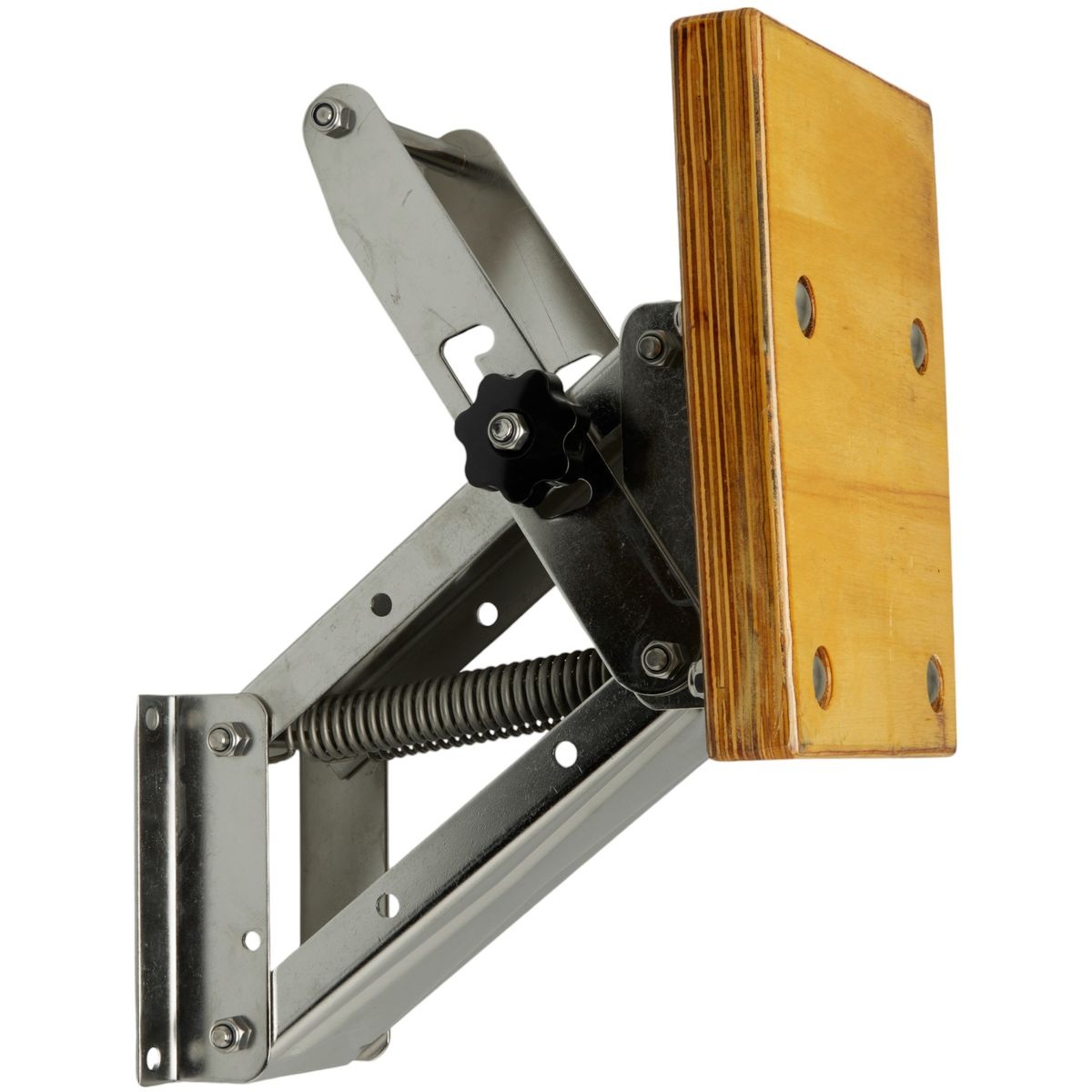

Kicker Motor Bracket Up to 40kg SS with Wooden Pad

Product Description:

• Material: Stainless Steel 304 with wooden pad
• For outboard motors up to 40kg / 20HP

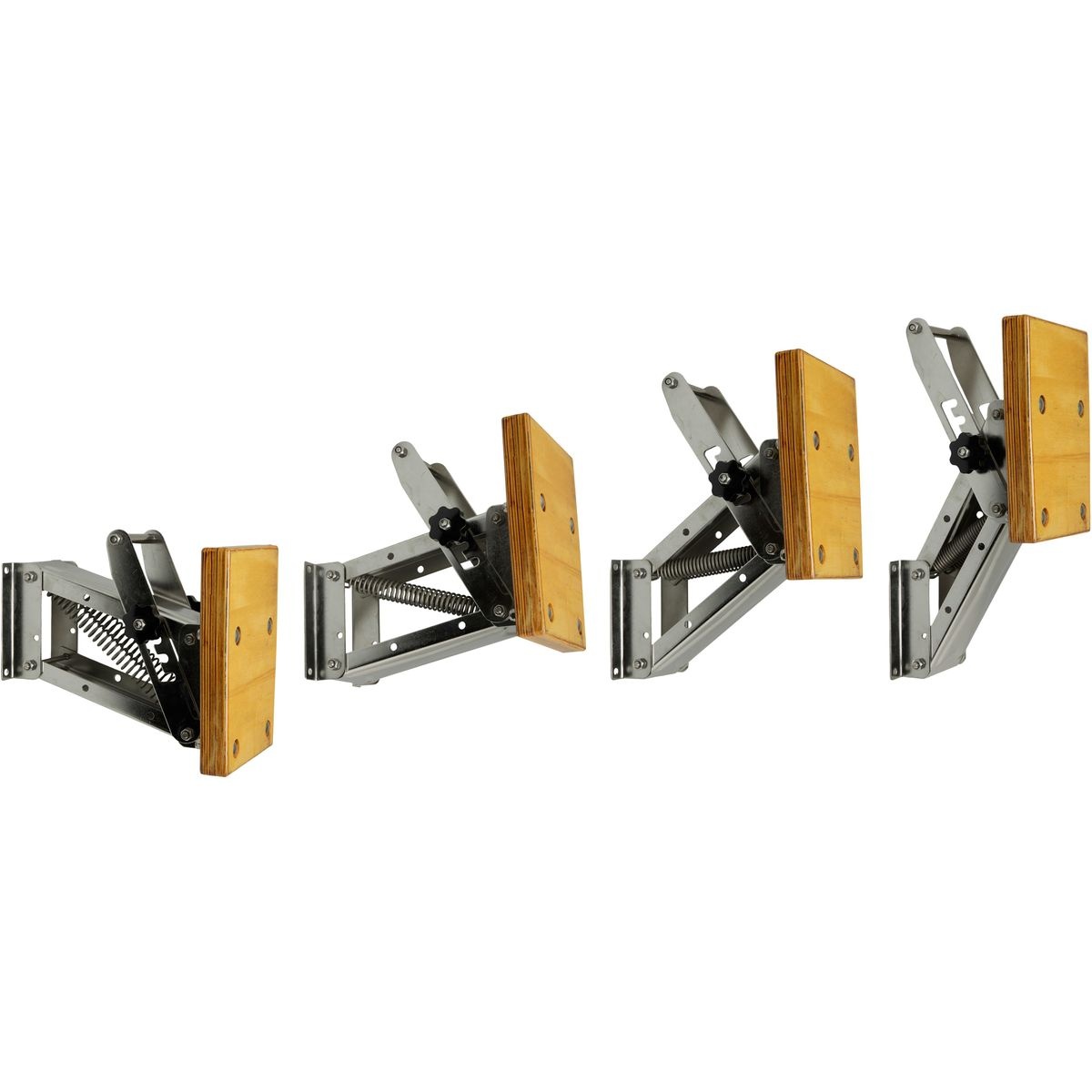

• 4 adjustable positions
• Number of springs: 2
• To be installed with 4 M8 bolts
• Mounting plate remains parallel to the pad in all positions

Dimensions:

• Height of wooden pad: 255mm
• Width of wooden pad top: 200mm
• Width of wooden pad bottom: 185mm
• Pad thickness: 34mm
• Center distance of mounting holes: 126mm (height) and 131mm (width)
• Height of mounting plate: 145mm
• Width of mounting plate: 150mm
• Height difference between lowest and highest position: approx. 257mm

Distances in lowest position:

• Bottom of pad 84mm below bottom of mounting plate
• Top of pad 23mm above top of mounting plate
• Outer edge of wooden pad to transom: 300mm



Distances in highest position:

• Bottom of pad 172mm above bottom of mounting plate
• Top of pad 280mm above top of mounting plate
• Outer edge of wooden pad to transom: 205mm

Tip: Pair with an outboard motor safety cable.
