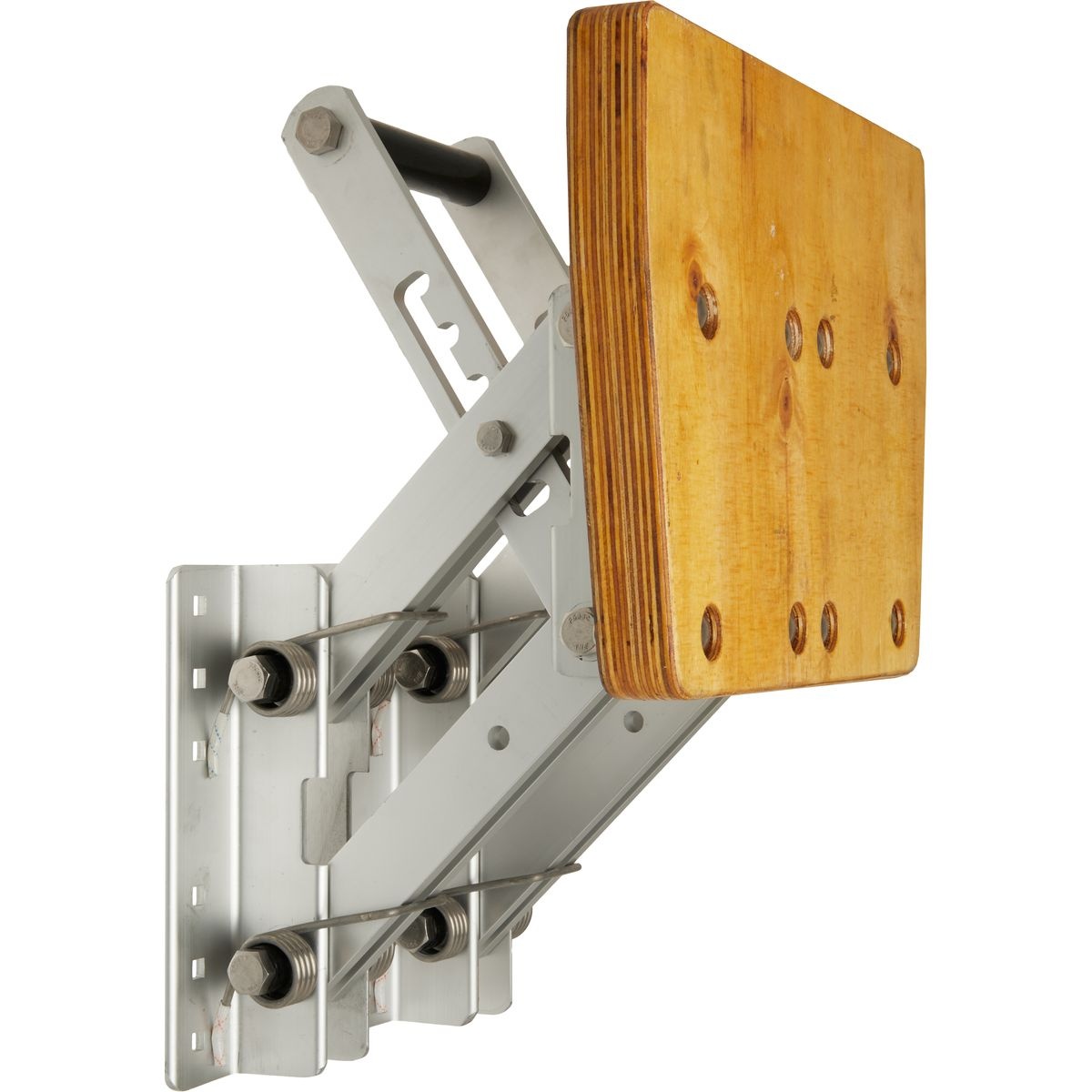

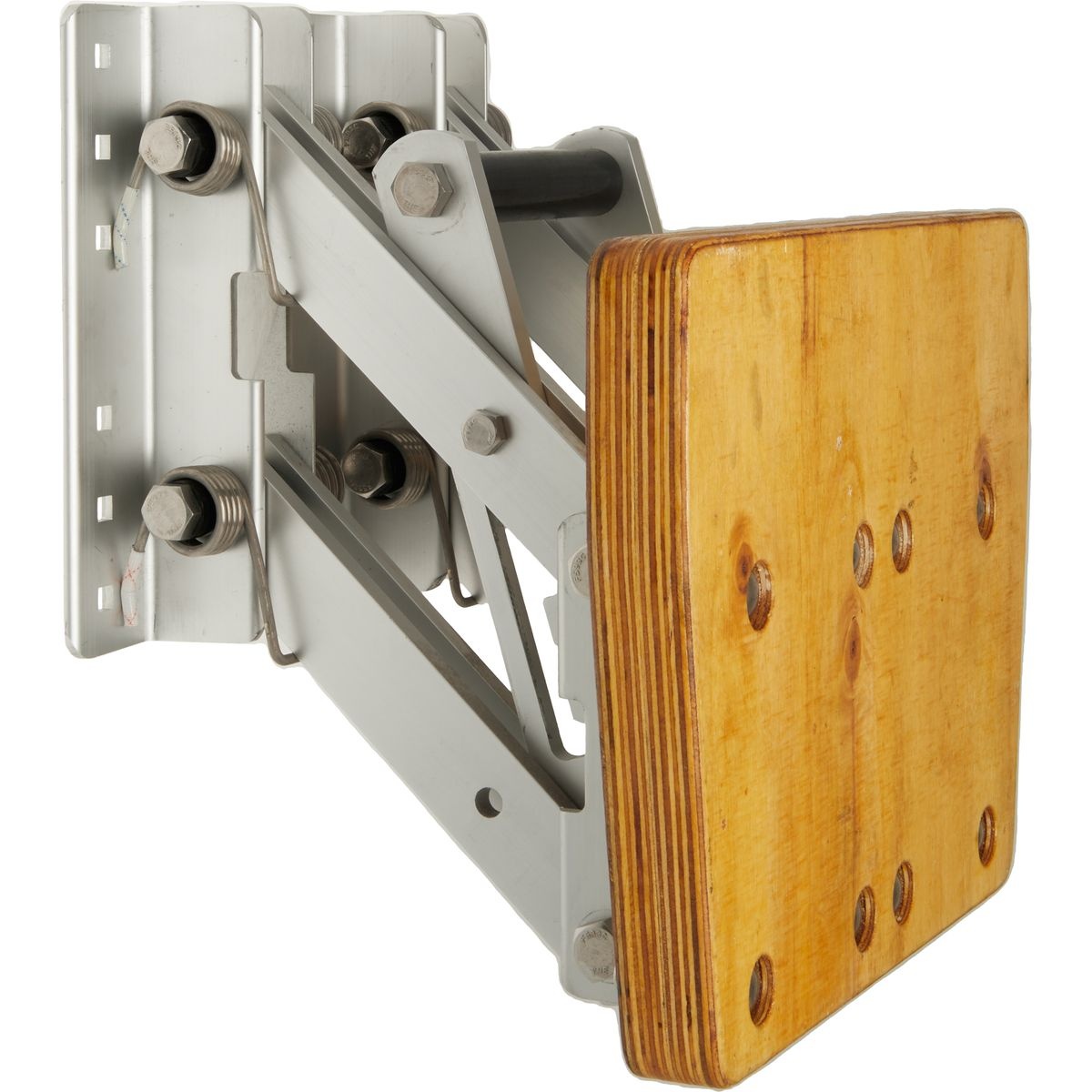

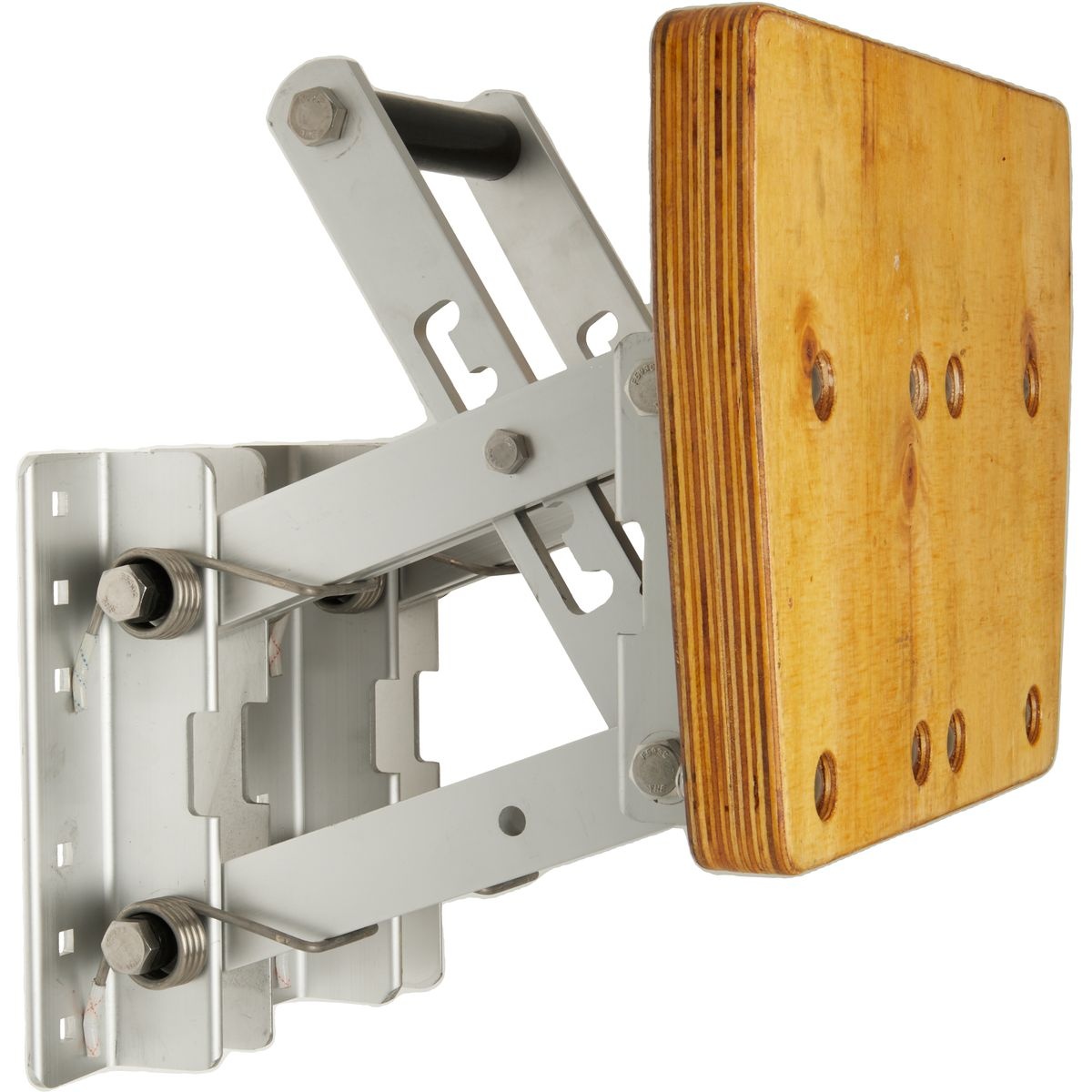

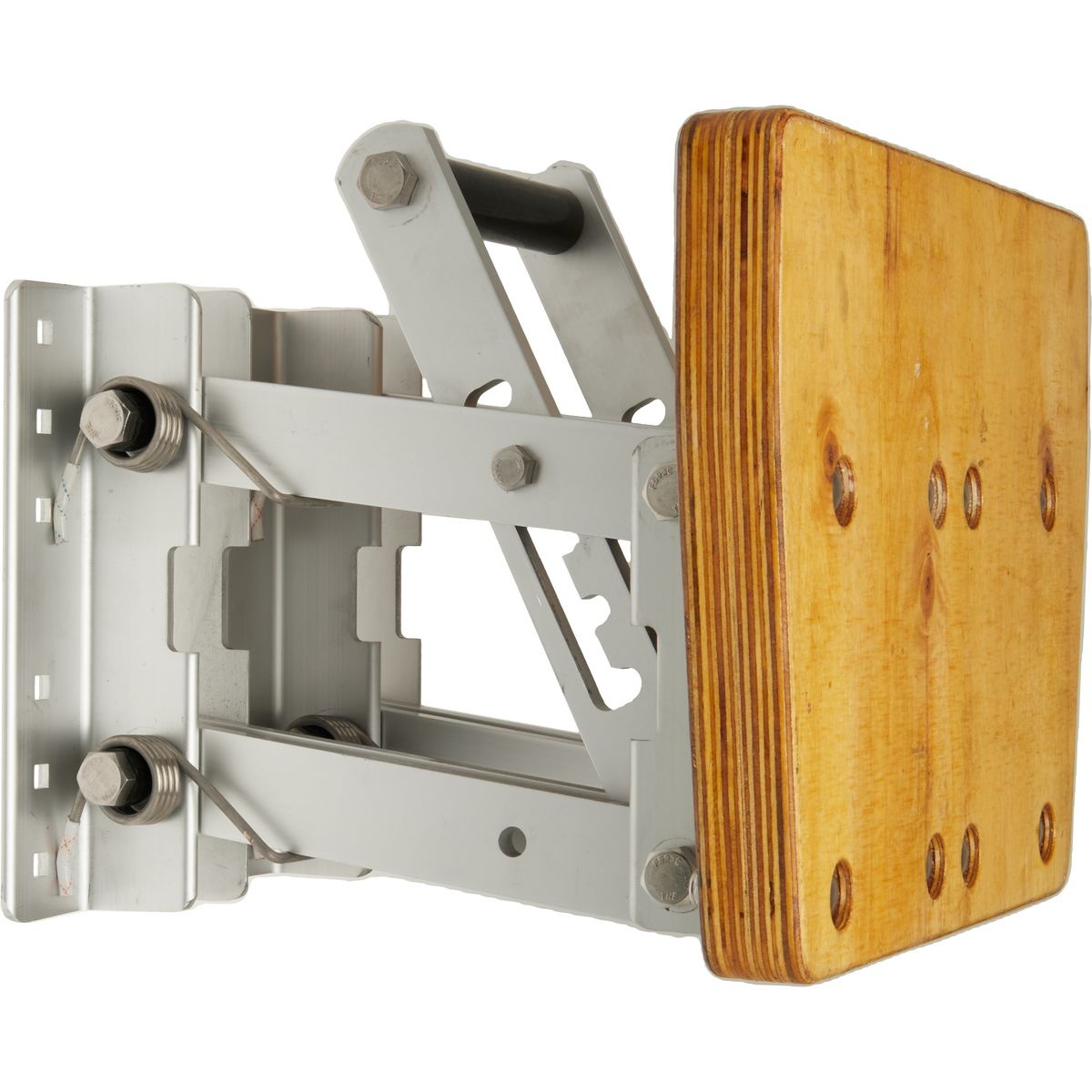

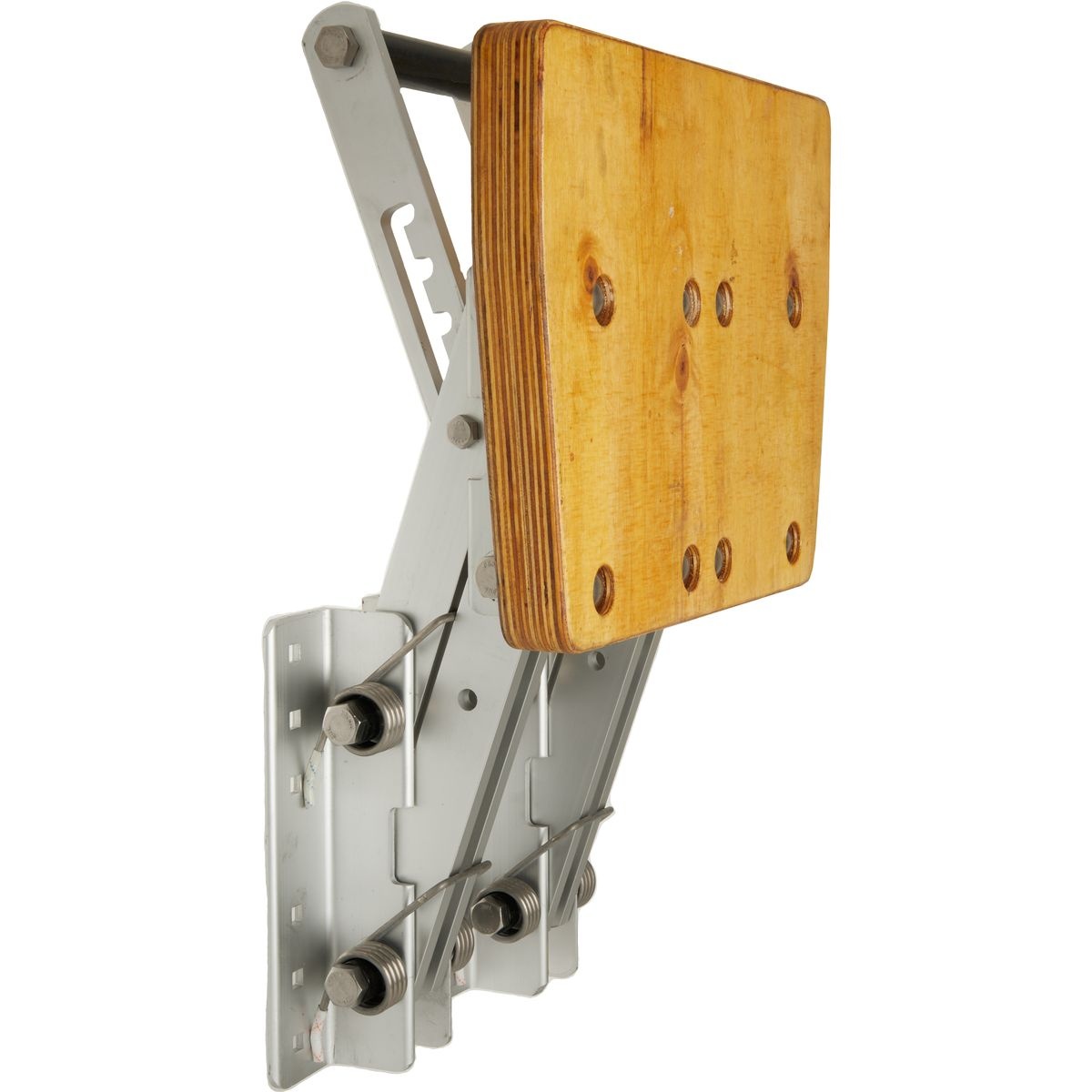

Kicker Motor Bracket Up to 50kg Aluminium with Wooden Pad

Product Description:

• Material: Aluminium with wooden
• For outboard motors up to 50kg / 25HP

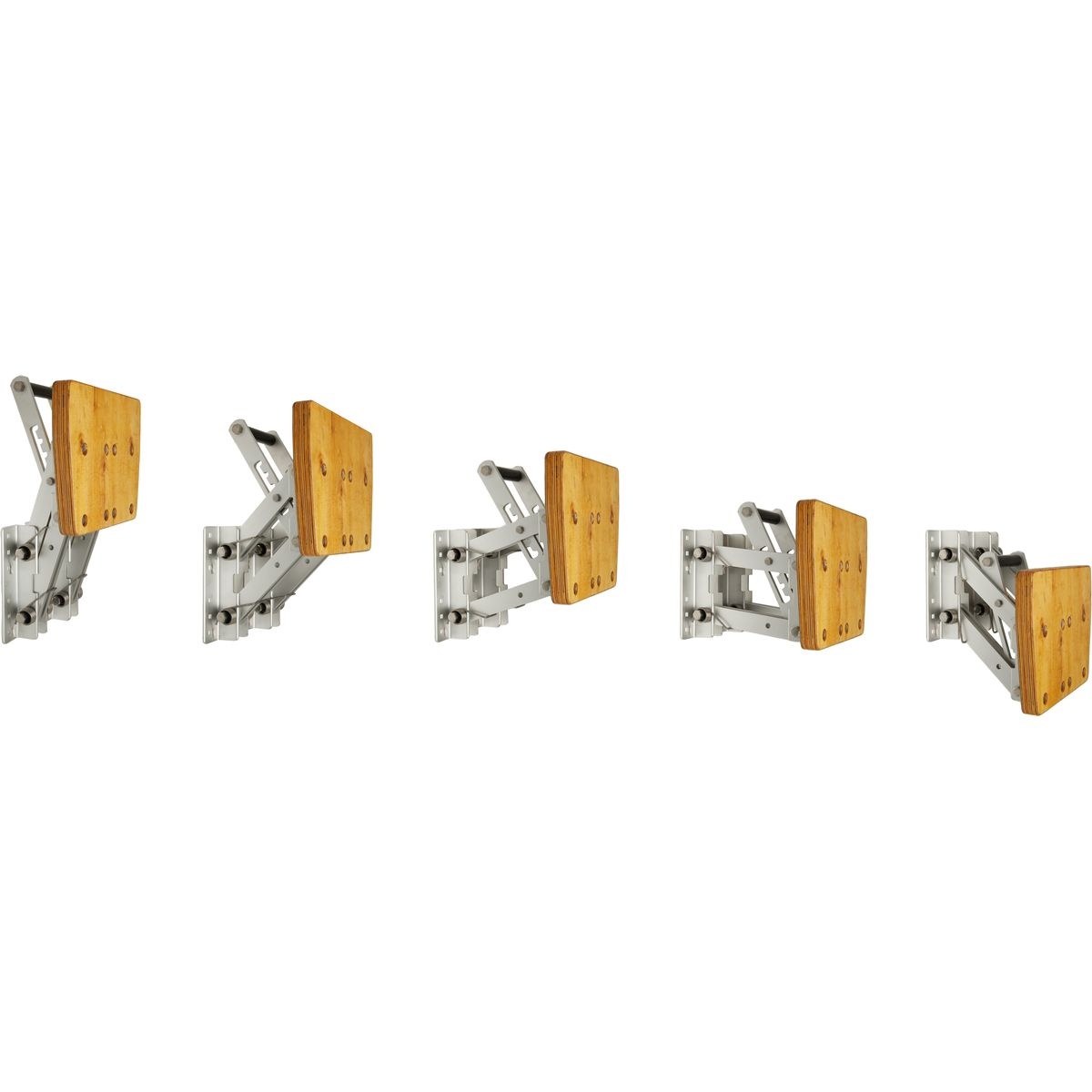

• 5 adjustment options
• To be fastened with M8 bolts
• Plank remains parallel to attachment in all positions

Dimensions:

• Height of wooden plank: approx. 267mm
• Width of top wooden plank: 340mm
• Width of bottom wooden plank: 300mm
• Plank thickness: 35mm
• Distance between attachment holes vertically: 32mm and center 64mm (From top to bottom attachment point 192mm)
• Distance between attachment holes horizontally: 2x 99mm
• Height of attachment plate: 228mm
• Width of attachment plate: 270mm
• Height difference between lowest and highest position: approx. 335mm

Distances in lowest position:

• Bottom of plank 110mm below bottom of attachment plate
• Top of plank 70mm below top of attachment plate
• Outer edge of wooden plank to transom: 252mm



Distances in highest position:

• Bottom of plank 225mm above bottom of attachment plate
• Top of plank 265mm above top of attachment plate
• Outer edge of wooden plank to transom: 168mm

Tip: Combine with an outboard motor safety cable.
