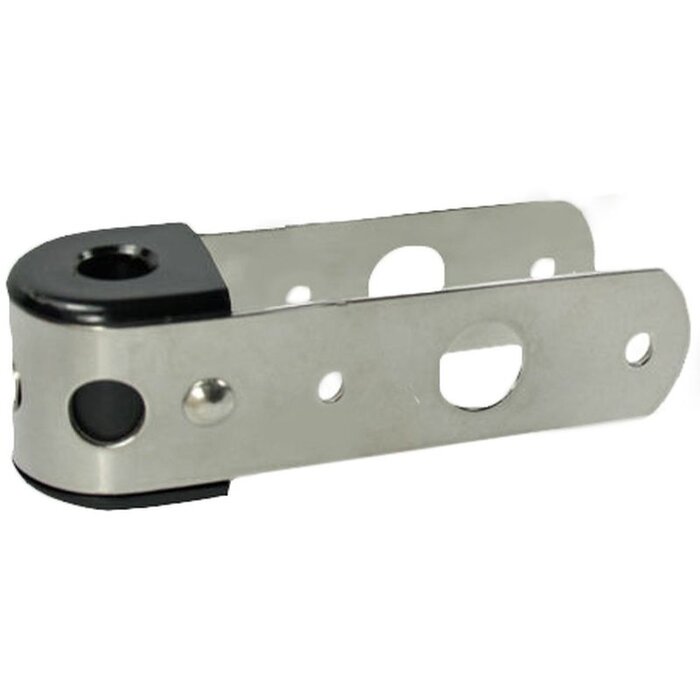

Viadana Rudder Gudgeon 12mm x 75mm for 8mm Pintle

This Viadana rudder gudgeon is suitable for an 8mm pintle and for rudders up to 12mm thick. If the rudder is thinner than 12mm, the extra space can be filled. The internal length measurement of the fitting is 63mm.

• 316 Stainless Steel
• For 8mm pintle
• Internal length measurement: 63mm
• Length from pin center to end: 75mm
• Total length: 84mm
• Internal width measurement: 11.5mm (maximum rudder thickness)
• To be fastened with screws
• Screw hole diameter: 5mm
