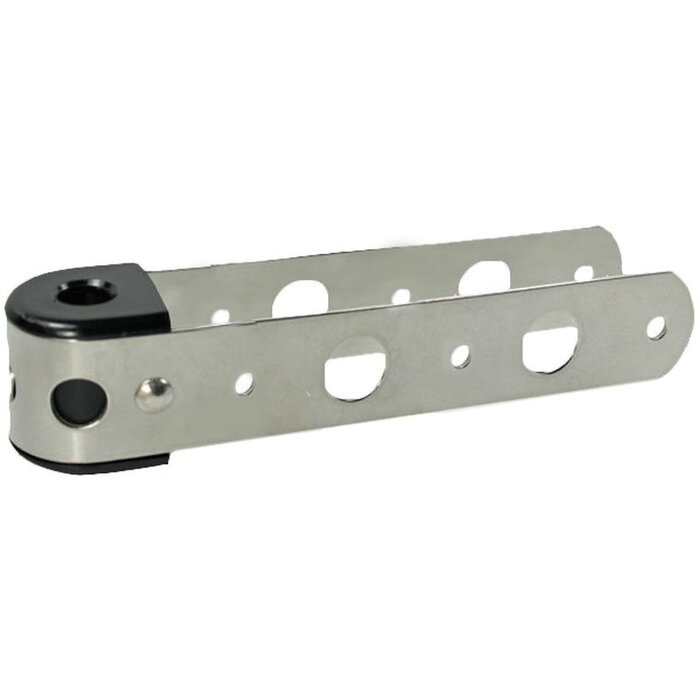

Viadana Rudder Gudgeon 16mm x 103mm for 8mm Pintle
Show all:
Pintles & Gudgeons
100% Directly Available from Stock
Order by 17:00, Shipped the Same Day (Mon-Fri)
Free Shipping on Orders Over €75
14 Days Return Policy
This product is available in the following variants:
Description
This Viadana rudder gudgeon is suitable for an 8mm pintle and for rudders up to 16mm thick. If the rudder is thinner than 16mm, the extra space can be filled. The internal length dimension of the fitting is 90mm.
- 316 Stainless Steel
- For 8mm pintle
- Internal length dimension: 90mm
- Length from pin center to end: 103mm
- Total length: 113mm
- Internal width dimension: 16mm (maximum rudder thickness)
- To be secured with screws
- Screw hole diameter: 5mm
