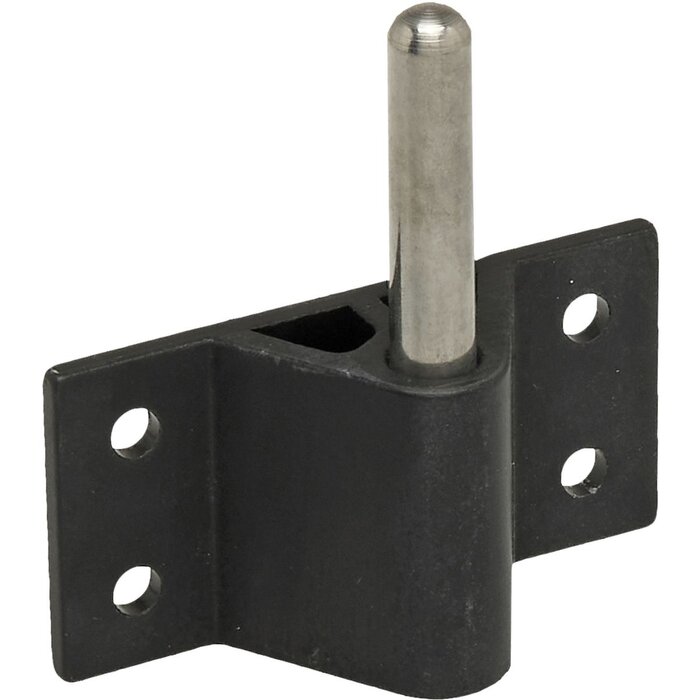

Viadana Transom Pintle 8mm x 31mm with 4 Holes

This Viadana transom pintle is made of hard anodized aluminium and stainless steel 316. The pintle is 8mm thick and 31mm high. The distance from the transom to the pintle center is 18mm. This 4-hole transom pintle is typically used at the bottom.

• Hard anodized aluminium with stainless steel 316 pintle
• Pintle thickness: 8mm
• Pintle height: 31mm
• Distance transom to pintle center: 18mm
• Hole spacing: 50mm and 17mm (center to center)
• Hole diameter: 5mm
• To be fastened with bolts
